Le Cœur de l'Exploration Pétrolière et Gazière : Un Regard sur les Plateformes de Forage

Les plateformes de forage sont l'épine dorsale de l'industrie pétrolière et gazière, servant de plateforme essentielle pour l'exploration et l'extraction de ces précieuses ressources. Ces machines complexes sont responsables du forage dans la terre, de l'extraction d'hydrocarbures et de la préparation du puits pour la production.

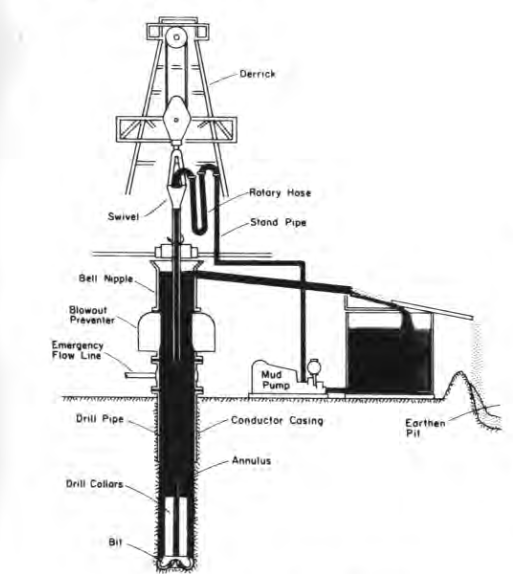

Cet article plonge dans les composants clés d'une plateforme de forage, en se concentrant sur l'équipement de surface qui alimente l'opération de forage.

Levage et Mise en Place de la Colonne de Forage :

La colonne de forage, un assemblage complexe de tubes de forage, de colliers de forage et de trépan, est le conduit pour la livraison du fluide de forage et la rotation du trépan. Pour gérer ce composant vital, les plateformes de forage utilisent l'équipement suivant :

  • Derrick : Cette structure imposante, souvent en acier, fournit un cadre pour le levage et l'abaissement de la colonne de forage, ainsi que d'autres équipements lourds.
  • Treuil : Le cœur de la plateforme, le treuil est un puissant système de treuils qui élève et abaisse la colonne de forage.
  • Système de Levage : Ce système, composé du treuil, du palan fixe et du palan mobile, gère le poids de la colonne de forage et facilite son mouvement vers le haut et vers le bas du puits.
  • Table Tournante : Cette plateforme rotative se connecte au sommet de la colonne de forage, fournissant la puissance nécessaire pour faire tourner le trépan.
  • Moteur de Fond de Puits : Une alternative à la table tournante, le moteur de fond de puits permet des vitesses de forage plus rapides et un meilleur contrôle de la colonne de forage.

Rotation du Trépan et Circulation du Fluide de Forage :

Le processus de forage nécessite une rotation constante du trépan et un flux continu de fluide de forage descendant la colonne de forage. Ceci est réalisé par :

  • Pompes à Boue : Ces pompes puissantes poussent le fluide de forage dans la colonne, lubrifiant le trépan, éliminant les cuttings et maintenant la stabilité du puits.
  • Système à Boue : Ce système complet comprend divers composants comme des réservoirs de boue, des vibreurs et des centrifugeuses, responsables de la préparation, de la circulation et du nettoyage du fluide de forage.
  • Système d'Alimentation : La plateforme de forage a besoin d'une source d'énergie fiable pour faire fonctionner ses nombreux composants. Cela peut être fourni par des moteurs diesel, des turbines à gaz ou des connexions électriques.

Considérations Clés dans les Opérations de Forage :

  • Sécurité : Les opérations de forage sont intrinsèquement dangereuses, exigeant une attention rigoureuse aux protocoles et procédures de sécurité.
  • Efficacité : Des opérations de forage optimisées sont essentielles pour maximiser l'extraction des ressources et minimiser les coûts.
  • Environnement : L'industrie se concentre de plus en plus sur la minimisation de l'impact environnemental des opérations de forage, en employant des pratiques et des technologies durables.

Conclusion :

La plateforme de forage témoigne de l'ingéniosité humaine et de la complexité de l'extraction pétrolière et gazière. Son équipement sophistiqué et ses processus permettent l'exploration et le développement de ces sources d'énergie vitales, tout en présentant des défis importants en termes de sécurité, d'efficacité et d'impact environnemental. À mesure que la technologie évolue, la plateforme de forage continuera sans aucun doute de s'adapter, repoussant les limites de l'exploration et de la production pétrolières et gazières.


Test Your Knowledge

Drilling Rig Quiz

Instructions: Choose the best answer for each question.

1. What is the primary function of a drilling rig? a) To transport oil and gas to refineries. b) To explore and extract oil and gas from the earth. c) To refine oil and gas into usable products. d) To store and distribute oil and gas.

Answer

b) To explore and extract oil and gas from the earth.

2. Which of the following components is NOT directly involved in lifting and lowering the drilling string? a) Derrick b) Drawworks c) Rotary Table d) Hoisting System

Answer

c) Rotary Table

3. What is the purpose of drilling fluid? a) To lubricate the drill bit and remove cuttings. b) To provide power to the rotary table. c) To store oil and gas extracted from the well. d) To regulate the flow of oil and gas.

Answer

a) To lubricate the drill bit and remove cuttings.

4. Which of the following is NOT a key consideration in drilling rig operations? a) Safety b) Efficiency c) Environmental impact d) Cost of refining oil and gas

Answer

d) Cost of refining oil and gas

5. What is the role of the mud pumps in the drilling process? a) To rotate the drill bit. b) To lift and lower the drilling string. c) To circulate drilling fluid down the drill string. d) To store drilling fluid.

Answer

c) To circulate drilling fluid down the drill string.

Drilling Rig Exercise

Scenario: You are the drilling supervisor on a new oil exploration project. Your team needs to drill a well 2,000 meters deep. The drilling string weighs 50 tons, and the drill bit needs to rotate at 100 RPM.

Task:
1. Outline the steps involved in the drilling process, from preparing the drilling string to reaching the target depth. 2. Briefly describe the roles of the following equipment in this process: * Derrick * Drawworks * Rotary Table * Mud Pumps * Mud System 3. What safety concerns should you address before and during drilling operations? 4. How would you ensure efficient drilling operations and minimize environmental impact?

Exercice Correction

**Steps involved in drilling:**

  1. Preparing the drilling string: Assemble the drill string, including the drill pipe, drill collars, and drill bit, ensuring proper connections.
  2. Lifting and lowering the drilling string: Use the derrick and drawworks to lower the drilling string into the wellbore.
  3. Rotating the drill bit: Engage the rotary table to rotate the drill bit at the desired speed (100 RPM) while circulating drilling fluid.
  4. Drilling and cutting: The rotating drill bit cuts through the rock formations, creating a wellbore.
  5. Circulating drilling fluid: Mud pumps push drilling fluid down the drill string to lubricate the bit, remove cuttings, and maintain wellbore stability.
  6. Monitoring drilling progress: Track drilling depth, rate of penetration, and other parameters.
  7. Reaching the target depth: Continue drilling until the target depth (2,000 meters) is reached.
  8. Casing and cementing: Run casing into the wellbore and cement it to stabilize the wellbore and prevent fluid leaks.

Equipment roles:

  • Derrick: Provides a framework for hoisting and lowering the drilling string, along with other heavy equipment.
  • Drawworks: Raises and lowers the drilling string, controlling the weight and tension on the drill string.
  • Rotary Table: Rotates the drill string, providing power to the drill bit.
  • Mud Pumps: Circulate drilling fluid down the drill string and back to the surface.
  • Mud System: Prepares, circulates, and cleans drilling fluid.

Safety Concerns:

  • Rig setup and inspection: Ensure the rig is properly assembled, inspected, and in good working condition.
  • Personnel training: Make sure all personnel are trained in safe drilling procedures.
  • Emergency procedures: Establish clear emergency response plans and communication protocols.
  • Well control: Implement well control measures to prevent blowouts and other incidents.
  • Working at heights: Provide safety equipment and training for workers operating at height.
  • Heavy lifting: Ensure proper procedures and equipment for handling heavy loads.

Efficiency and Environmental Impact:

  • Optimized drilling parameters: Adjust drilling parameters like bit weight and rotation speed for optimal performance.
  • Wellbore stability: Use appropriate drilling fluid to maintain wellbore stability and prevent wellbore collapse.
  • Minimizing waste: Recycle drilling fluid and cuttings, minimize emissions from drilling operations, and comply with environmental regulations.
  • Sustainable practices: Consider adopting environmentally friendly drilling technologies and practices.


Books

  • Drilling Engineering: Principles and Practices by M.P. Sharma & K.S. Rao: Provides a comprehensive overview of drilling engineering principles and practices, including drilling rigs and their components.
  • Petroleum Engineering: Drilling and Well Completion by B.H. Lathi: A classic textbook covering all aspects of drilling, including a detailed explanation of drilling rigs and their operations.
  • The Complete Guide to Oil and Gas Exploration and Production by Michael T. Economides & John H. Nolte: Offers a broad understanding of the oil and gas industry, including a chapter on drilling rigs and their role in exploration and production.
  • Drilling and Well Service Engineering by R.A. Dean & R.B. Nicholson: Focuses on the engineering aspects of drilling and well services, with significant attention to drilling rigs and their equipment.

Articles

  • "Drilling Rigs: The Backbone of Oil and Gas Exploration" by [Your Name]: This article you provided could be a great starting point, with its detailed description of drilling rig components.
  • "A Comprehensive Review of Drilling Rig Design and Operation" by [Author(s)]: Search for recent journal articles published in engineering and petroleum journals.
  • "The Evolution of Drilling Rigs: From Early Designs to Modern Technology" by [Author(s)]: Find articles exploring the history and technological advancements of drilling rigs.

Online Resources

  • SPE (Society of Petroleum Engineers): https://www.spe.org/ Offers numerous resources including journal articles, conferences, and technical papers related to drilling rigs.
  • Oil & Gas Journal: https://www.ogj.com/ Provides industry news, articles, and technical information covering drilling rigs and other oil and gas technologies.
  • DrillingInfo: https://www.drillinginfo.com/ Offers comprehensive data and analytics related to drilling activity, including rig counts, performance metrics, and drilling technology.
  • Offshore Technology: https://www.offshore-technology.com/ Covers the latest news, projects, and technologies in offshore oil and gas exploration, including drilling rigs designed for offshore operations.

Search Tips

  • Use specific keywords: "Drilling rig components", "types of drilling rigs", "drilling rig operations", "drilling rig safety", "drilling rig technology".
  • Combine keywords with specific terms: "Drilling rig design + safety standards", "drilling rig maintenance + best practices", "drilling rig technology + environmental impact".
  • Use quotation marks: "drilling rig" + "rotary table" will find pages containing both terms together.
  • Filter by date and source: Use filters to narrow down your results by specific dates, websites, or file types.
  • Use advanced search operators: "site:spe.org drilling rigs" to search for specific keywords on a particular website.

Techniques

Chapter 1: Techniques

Drilling Techniques: Navigating the Earth's Depths

The process of drilling a well is a complex and multifaceted endeavor. Drilling techniques evolve constantly to adapt to different geological formations, well depths, and environmental considerations. Here are some commonly used techniques:

1. Rotary Drilling:

  • The most common technique, employing a rotating drill bit to cut through the earth.
  • Mechanism: A drill string consisting of drill pipe, drill collars, and a drill bit is attached to the rotary table or top drive.
  • Drilling Fluid (Mud): A crucial element. Circulated down the drill string, it lubricates the bit, removes cuttings, and maintains wellbore stability.
  • Advantages: Versatility, suitable for various formations, and relatively high drilling speed.
  • Limitations: Can be challenging in highly pressured or unstable formations.

2. Directional Drilling:

  • Allows drilling a wellbore deviated from the vertical, reaching targets that are not directly beneath the rig.
  • Applications: Reaching oil or gas deposits located at an angle, accessing multiple reservoirs from a single location, and minimizing surface impact.
  • Tools: Downhole motors, bent subs, and measurement while drilling (MWD) tools are employed to steer the wellbore.
  • Advantages: Enhanced access to resources, reduced environmental footprint, and improved reservoir management.
  • Limitations: Complex and costly, requiring specialized expertise.

3. Horizontal Drilling:

  • A specific type of directional drilling where the wellbore is drilled horizontally for a significant distance.
  • Applications: Maximizing production from reservoirs with large surface areas, accessing unconventional resources like shale gas, and enhancing reservoir recovery.
  • Advantages: Increased production, reduced wellbore cost, and improved reservoir drainage.
  • Limitations: Requires sophisticated equipment, advanced technology, and careful planning.

4. Underbalanced Drilling:

  • Uses a drilling fluid pressure lower than the formation pressure, allowing for higher drilling speeds and better formation evaluation.
  • Applications: Drilling in formations with high pressures, minimizing formation damage, and improving reservoir communication.
  • Advantages: Faster drilling rates, better formation evaluation, and reduced formation damage.
  • Limitations: Requires careful control and expertise to prevent uncontrolled fluid influx.

5. Managed Pressure Drilling:

  • A technique that actively manages the wellbore pressure, optimizing drilling operations and improving wellbore stability.
  • Applications: Dealing with highly pressured formations, minimizing formation damage, and preventing wellbore instability.
  • Advantages: Improved safety, higher drilling efficiency, and reduced environmental impact.
  • Limitations: Requires sophisticated equipment and advanced technology.

6. Other Specialized Techniques:

  • Air Drilling: Utilizes compressed air instead of drilling fluid, suitable for shallow wells and formations with little water content.
  • Wireline Logging: Used to evaluate the wellbore's geological formations, identify zones of interest, and guide further drilling operations.

Each drilling technique offers its own advantages and challenges, selected based on the specific well's objectives, geological conditions, and environmental considerations.
