Clay: The Silent Architect of Oil & Gas Reservoirs

In the world of oil and gas exploration, the term "clay" may seem simple, but it holds a significant weight. These fine-grained minerals, often less than 4 microns in size, are a crucial component of the complex geological formations where hydrocarbons reside. While seemingly insignificant, clay plays a vital role in shaping the properties of reservoirs and influencing the extraction of oil and gas.

Beyond the Surface:

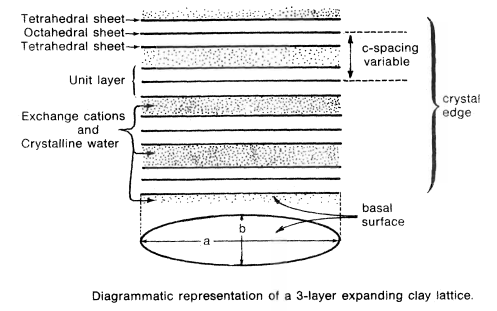

Clay minerals are primarily composed of silicate sheets, forming intricate structures at the microscopic level. In oil field jargon, the most common clay types are Smectite (montmorillinite), illite, kaolinite, and chlorite. These "authogenic clays," as they're called, exhibit an extremely high surface area-to-volume ratio, making them incredibly reactive and influential within the reservoir environment.

The Clay's Impact:

Permeability Control: Clay's high surface area and intricate structure can significantly impact the permeability of a reservoir. Clays can bind together, forming tight, impermeable layers that restrict the flow of oil and gas. Conversely, certain types of clays can act as pathways, enhancing permeability and facilitating production.
Fluid Retention: Clay minerals have an affinity for water. This affinity can lead to water retention within the reservoir, impacting the overall production of hydrocarbons. Understanding the interaction between clay and water is critical for optimizing extraction strategies.
Chemical Reactions: The reactive nature of clay minerals makes them susceptible to interactions with other elements within the reservoir. These interactions can lead to the formation of mineral scales, which can hinder production and require costly treatments.

Managing the Clay Factor:

The influence of clay on oil and gas production necessitates careful consideration and proactive management. Understanding the type and distribution of clays within a reservoir allows engineers to:

Optimize Well Design: By mapping the distribution of clay layers, engineers can design wells that avoid problematic areas and maximize access to permeable zones.
Predict and Prevent Formation Damage: Clay-induced formation damage, like the formation of scales, can be anticipated and mitigated through appropriate chemical treatments and well completion techniques.
Improve Recovery: By understanding the role of clay in fluid retention, engineers can implement strategies to minimize water production and optimize hydrocarbon recovery.

The Silent Partner:

While often overlooked, clay is a crucial element in the complex tapestry of oil and gas reservoirs. Its influence on permeability, fluid retention, and chemical reactions cannot be ignored. Understanding its behavior and managing its impact are essential for successful hydrocarbon exploration and extraction. By acknowledging the role of clay, we unlock a deeper understanding of the silent architect of our energy future.

Test Your Knowledge

Quiz: Clay - The Silent Architect of Oil & Gas Reservoirs

Instructions: Choose the best answer for each question.

1. What is the primary composition of clay minerals? (a) Quartz crystals (b) Silicate sheets (c) Calcium carbonate (d) Iron oxides

Answer

(b) Silicate sheets

2. Which of the following is NOT a common type of clay mineral found in oil reservoirs? (a) Smectite (b) Illite (c) Kaolinite (d) Feldspar

Answer

(d) Feldspar

3. How can clay minerals affect the permeability of a reservoir? (a) They always increase permeability. (b) They always decrease permeability. (c) They can either increase or decrease permeability depending on the type and arrangement of clay. (d) They have no impact on permeability.

Answer

4. Why is it important to understand the interaction between clay and water in a reservoir? (a) Because clay can absorb water, impacting hydrocarbon production. (b) Because clay can react with water, producing harmful chemicals. (c) Because water can dissolve clay, weakening the reservoir. (d) Because water can create pathways for oil and gas to escape.

Answer

(a) Because clay can absorb water, impacting hydrocarbon production.

5. How can engineers manage the impact of clay on oil and gas production? (a) By using specialized drilling techniques to avoid clay layers. (b) By applying chemical treatments to prevent clay-induced formation damage. (c) By optimizing well design to maximize access to permeable zones. (d) All of the above.

Answer

(d) All of the above.

Exercise: Clay & Reservoir Permeability

Scenario: You are an engineer working on a new oil well. The reservoir contains a significant amount of smectite clay. Smectite is known for its swelling properties when exposed to water. Based on this information, what are your concerns regarding the well's performance and how would you address them?

Exercice Correction

**Concerns:**
* **Formation Damage:** The swelling of smectite clay when exposed to water can cause formation damage, reducing permeability and impeding oil flow. * **Water Production:** Smectite's affinity for water could lead to increased water production alongside oil, impacting overall production efficiency. * **Wellbore Stability:** The swelling clay could potentially create instability in the wellbore, leading to drilling complications and potentially even well collapse. **Addressing Concerns:**
* **Well Design:** Design the well to avoid clay-rich zones as much as possible. * **Completion Techniques:** Use completion techniques that minimize contact between the wellbore and the clay-rich formation. This could involve isolating the clay layer with a casing or using specialized completion fluids to minimize swelling. * **Chemical Treatments:** Apply chemical treatments to the wellbore to minimize clay swelling and prevent formation damage. * **Production Strategies:** Monitor water production closely and adjust production strategies to maximize oil recovery while minimizing water production. **Additional Notes:**
* It's crucial to obtain detailed geological information about the reservoir, including the distribution and properties of clay minerals. * Continuously monitor the well's performance and make adjustments as needed to optimize production and mitigate potential problems.
