Pumps, the unsung heroes of many industrial processes, are essential for moving fluids from one point to another. Understanding the different types of pumps and their classifications is crucial for choosing the right tool for the job. While various classifications exist based on application, material, or handled fluid, a more fundamental and comprehensive approach focuses on the energy transfer mechanism.
This article dives into the core classification system used in mechanical engineering, dividing pumps into two primary categories: dynamic and displacement.

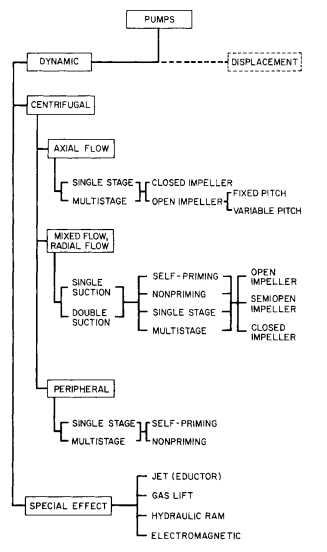

Dynamic Pumps:

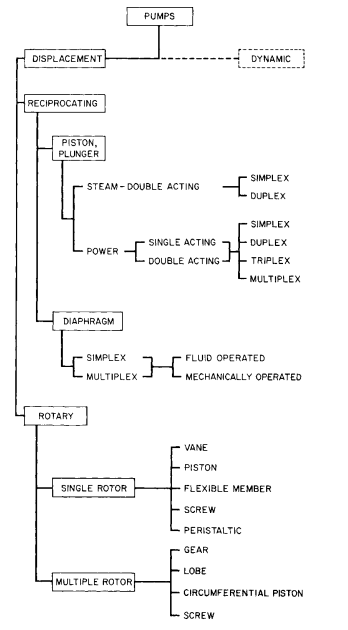

Displacement Pumps:
Beyond the Basics:
This basic classification serves as a foundation for understanding pump operation and selection. Further detailed information on specific pump types, their working principles, and applications can be found in specialized literature and engineering handbooks.
By mastering the fundamental classification system, engineers can navigate the vast world of pumps with confidence, selecting the most appropriate type for their specific needs and ensuring efficient and reliable fluid handling in any industrial application.
Instructions: Choose the best answer for each question.
1. Which of the following is NOT a subcategory of dynamic pumps?
a) Centrifugal pumps b) Reciprocating pumps c) Axial flow pumps d) Mixed flow pumps
b) Reciprocating pumps
2. How do dynamic pumps transfer energy to the fluid?
a) By directly compressing the fluid b) By increasing fluid velocity and converting it to pressure c) By using a rotating element to displace the fluid d) By creating a vacuum to draw the fluid
b) By increasing fluid velocity and converting it to pressure
3. Which of the following is a type of displacement pump?
a) Centrifugal pump b) Jet pump c) Gear pump d) Axial flow pump
c) Gear pump
4. What is the primary difference between dynamic and displacement pumps?
a) The type of fluid they can handle b) The pressure they can generate c) The energy transfer mechanism d) Their application in industry
c) The energy transfer mechanism
5. Which of the following statements is TRUE about centrifugal pumps?
a) They are primarily used for high-pressure applications b) They are always single-stage pumps c) They use a rotating impeller to increase fluid velocity d) They are more efficient than displacement pumps
c) They use a rotating impeller to increase fluid velocity
Scenario: You are tasked with designing a pumping system for a water treatment plant. The system needs to move 500 gallons per minute (gpm) of water from a reservoir to a storage tank located 100 feet above the reservoir.
Task:
**Recommendation:** In this scenario, a **dynamic pump**, specifically a **centrifugal pump**, would be the most suitable choice. **Reasoning:** * **Flow Rate:** Centrifugal pumps are well-suited for handling high flow rates, like the 500 gpm required in this application. * **Pressure Requirements:** Moving water 100 feet vertically requires overcoming significant head pressure. Centrifugal pumps can be designed to generate the necessary pressure for this application. * **Application:** Water treatment plants typically use centrifugal pumps for tasks like moving large volumes of water, which aligns with this scenario. While displacement pumps can be used for certain applications, they are generally less efficient for high-volume, high-pressure scenarios like this.
This expanded guide delves deeper into pump classification, breaking down the information into distinct chapters for clarity and comprehensive understanding.
Chapter 1: Techniques for Pump Classification
Pump classification relies primarily on the method of energy transfer to the fluid. This fundamental principle divides pumps into two main categories:
Dynamic Pumps: These pumps continuously add energy to the fluid, increasing its velocity. This kinetic energy is then converted into pressure as the fluid slows down. The key characteristic is the continuous flow nature. Analysis techniques for dynamic pumps often involve examining flow patterns, pressure gradients, and impeller designs using computational fluid dynamics (CFD) and experimental methods like flow visualization.
Displacement Pumps: These pumps add energy intermittently, typically by changing the volume of a chamber containing the fluid. This directly increases the pressure. The flow is pulsating rather than continuous. Analysis for these pumps might involve examining the geometry of the pumping chambers, valve timing, and fluid compressibility.
Further classification within these categories often involves considerations like:
Chapter 2: Models of Pumps
Understanding the underlying models helps predict pump performance and select appropriate equipment. These models can be broadly categorized as:
Empirical Models: Based on experimental data and correlations. These models are useful for predicting performance within the range of tested conditions but may lack accuracy outside that range. Examples include affinity laws for scaling pump performance.
Theoretical Models: Derived from fundamental fluid mechanics principles. These models offer a deeper understanding of pump behavior and can be applied to a wider range of operating conditions. However, they may require simplifying assumptions and may not always accurately capture real-world complexities. Examples include models based on the Navier-Stokes equations for flow prediction in pump impellers.
Computational Fluid Dynamics (CFD) Models: Use numerical methods to solve the governing fluid mechanics equations for complex geometries. These provide detailed flow patterns and performance predictions, but are computationally intensive and require expertise.
Specific models exist for different pump types, reflecting their unique operating principles. For example, centrifugal pump models account for impeller geometry, blade angles, and flow velocities, while reciprocating pump models consider piston motion, valve timing, and fluid compressibility.
Chapter 3: Software for Pump Selection and Analysis
Various software packages are available to aid in pump selection, analysis, and design:
Pump selection software: These programs allow users to input application requirements (flow rate, head, fluid properties) and select suitable pumps from a database. They often provide performance curves and cost comparisons.
CFD software: Packages like ANSYS Fluent, COMSOL Multiphysics, and OpenFOAM allow detailed simulation of fluid flow within pumps, enabling optimization of designs and prediction of performance under varying conditions.
Performance prediction software: Software specifically designed to predict pump performance characteristics based on geometric parameters and operating conditions.
CAD software: Used for creating and modifying 3D pump designs, facilitating the integration of simulations and allowing for improved design optimization.
The choice of software depends on the specific needs, from simple selection to detailed analysis and design.
Chapter 4: Best Practices in Pump Selection and Operation
Optimizing pump selection and operation is crucial for efficiency and longevity. Best practices include:
Accurate needs assessment: Precisely define the required flow rate, head, fluid properties, and operating conditions before selecting a pump.
Proper sizing: Select a pump with sufficient capacity to meet peak demands while considering future expansion needs.
Material compatibility: Ensure the pump materials are compatible with the handled fluid to prevent corrosion or degradation.
Regular maintenance: Implement a schedule for routine inspection, cleaning, and repair to prevent failures and ensure optimal performance.
Energy efficiency: Select high-efficiency pumps and implement strategies to reduce energy consumption, such as variable speed drives.
System optimization: Design the entire pumping system (piping, valves, etc.) for optimal flow and minimizing energy losses.
Chapter 5: Case Studies in Pump Application
Analyzing real-world examples provides valuable insights into pump selection and applications:
Case Study 1: Water supply system: Discuss the selection of centrifugal pumps for large-scale water distribution networks, considering flow rates, head requirements, and energy efficiency.
Case Study 2: Chemical processing plant: Analyze the choice of specific pumps (e.g., positive displacement pumps) for handling corrosive or viscous fluids, highlighting material selection and safety considerations.
Case Study 3: Oil and gas industry: Showcase the application of specialized pumps for handling high-pressure fluids or slurries, emphasizing reliability and durability requirements.
Case Study 4: HVAC systems: Illustrate the use of various pump types in heating, ventilation, and air conditioning systems, considering energy efficiency and noise reduction.
These case studies demonstrate how various pump types are applied in diverse contexts, emphasizing the importance of careful selection and system design.
