Funnel Viscosity

Test Your Knowledge

Funnel Viscosity Quiz:

Instructions: Choose the best answer for each question.

1. What is the primary purpose of using a Marsh funnel in viscosity measurement?

a) To heat the fluid before measurement. b) To precisely measure the volume of the fluid. c) To determine the time it takes for a specific volume of fluid to flow through the funnel. d) To filter impurities from the fluid.

2. Which of the following is NOT a key feature of funnel viscosity measurement?

a) Simplicity b) Low cost c) High accuracy d) Practicality

3. In what industry is funnel viscosity commonly used to monitor the consistency of concrete mixes?

a) Food processing b) Construction c) Petroleum d) Paints and coatings

4. What does a longer funnel viscosity time indicate about the fluid?

a) The fluid is less viscous. b) The fluid is more viscous. c) The fluid is at a higher temperature. d) The fluid is at a lower pressure.

5. What is a significant limitation of funnel viscosity measurement?

a) It requires expensive equipment. b) It is not suitable for industrial applications. c) It is highly sensitive to changes in temperature and pressure. d) It is less accurate than other viscosity measurement methods.

Funnel Viscosity Exercise:

Instructions:

Imagine you are a quality control inspector at a paint manufacturing company. You need to ensure that all batches of paint have a consistent viscosity. You use a Marsh funnel to measure the viscosity of a new batch of paint. The time it takes for 1 liter of paint to flow through the funnel is 45 seconds.

1. What is the funnel viscosity of this batch of paint?

2. You compare this measurement to the previous batch of paint, which had a funnel viscosity of 50 seconds. What can you conclude about the viscosity of the new batch of paint compared to the previous batch?

3. Explain why it is important to maintain consistent viscosity in paint production.

Techniques

Funnel Viscosity: A Detailed Exploration

This document expands on the concept of funnel viscosity, breaking it down into specific chapters for clarity and detailed understanding.

Chapter 1: Techniques

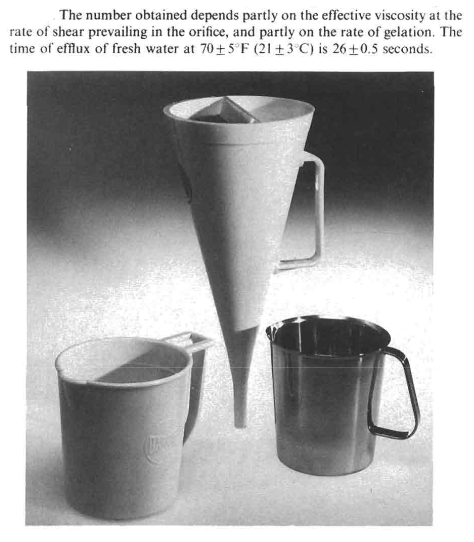

Funnel viscosity measurement relies on a simple yet effective technique: measuring the flow time of a fluid through a standardized funnel. The most common type is the Marsh funnel, characterized by a specific cone angle and orifice diameter. The standard procedure involves:

1. Preparation: Ensure the funnel is clean and dry. The fluid should be at a controlled and consistent temperature, as temperature significantly impacts viscosity. Pre-heating or cooling may be necessary.

2. Filling: Fill the funnel completely to the designated fill line, avoiding air bubbles. Gentle tapping may be necessary to remove trapped air.

3. Timing: Start the timer precisely the moment the fluid begins to flow from the orifice. Stop the timer when the specified volume (usually 1 liter) has completely drained.

4. Recording: Record the flow time in seconds. This time represents the funnel viscosity. Multiple measurements should be taken and averaged to improve accuracy and account for variations.

5. Cleaning: Thoroughly clean the funnel after each measurement to prevent cross-contamination.

Variations exist in funnel design, including the size of the orifice and the overall cone angle. These variations necessitate specifying the exact funnel type used when reporting results, as direct comparison between measurements from different funnels is problematic. Some less common techniques might involve using different funnel shapes or even simple, improvised funnels for quick, less-precise assessments.

Chapter 2: Models

While funnel viscosity doesn't rely on a complex mathematical model like rotational viscometry, understanding the underlying physics helps interpret the results. The flow through the funnel is governed by factors including:

• Gravity: The driving force for fluid flow.
• Fluid viscosity: The resistance to flow, directly related to the flow time.
• Funnel geometry: The cone angle and orifice diameter significantly affect the flow rate.
• Fluid density: A denser fluid will flow slightly faster due to increased gravitational force.
• Surface tension: Can influence the initial flow behavior, particularly for low-viscosity fluids.

A simplified model can be expressed as a relationship between flow time (t) and viscosity (η): t ∝ η. This proportionality suggests that flow time increases linearly with viscosity, although this is an approximation and doesn't account for all the variables involved. More sophisticated models incorporating the various factors listed above would require extensive empirical calibration and are rarely used in practice due to the inherent simplicity of the method.

Chapter 3: Software

Specialized software is rarely used for funnel viscosity measurements. The process is manual, primarily involving timing the flow and recording the result. However, spreadsheet software (like Microsoft Excel or Google Sheets) can be useful for:

• Data logging: Recording multiple measurements, averaging the results, and calculating standard deviations.
• Data analysis: Comparing viscosity values from different batches or samples.
• Data visualization: Creating graphs and charts to illustrate trends in viscosity.

More advanced statistical software packages could be used for more in-depth analysis if multiple factors (temperature, pressure, etc.) are being controlled and studied simultaneously. However, for typical funnel viscosity applications, basic spreadsheet functionalities are sufficient.

Chapter 4: Best Practices

To ensure reliable and consistent funnel viscosity measurements, adhere to these best practices:

• Temperature control: Maintain a constant temperature throughout the measurement process.
• Cleanliness: Clean the funnel thoroughly before and after each measurement to prevent contamination.
• Consistent filling: Fill the funnel to the designated mark consistently to ensure a repeatable starting volume.
• Multiple measurements: Take several measurements and average the results to minimize errors.
• Appropriate funnel selection: Select a funnel appropriate for the viscosity range of the fluid being measured.
• Calibration: Periodically check the funnel for any damage or wear that might affect the accuracy.
• Documentation: Record all relevant details, including the funnel type, temperature, and the number of measurements.

Chapter 5: Case Studies

• Case Study 1: Paint Viscosity Control: A paint manufacturer uses funnel viscosity to quickly assess the viscosity of different paint batches during production. Consistent funnel viscosity readings ensure the paint maintains the desired application properties. Deviations from the target flow time trigger adjustments to the paint formulation.

• Case Study 2: Concrete Mix Consistency: A construction company uses funnel viscosity to monitor the consistency of concrete mixes on-site. The flow time helps ensure the concrete is workable and meets the required specifications. A significantly shorter or longer flow time might indicate problems with the mix proportions or water content.

• Case Study 3: Food Product Quality Control: A food processing plant uses funnel viscosity to control the viscosity of sauces and syrups. Regular checks ensure the products maintain the desired consistency and flow characteristics. Changes in funnel viscosity can trigger adjustments to the processing parameters or ingredient ratios.

These case studies illustrate how funnel viscosity provides a simple yet effective way to monitor and control the viscosity of various materials in different industries. While less precise than other techniques, its simplicity and low cost make it a practical tool for rapid, on-site quality control.
