Sélection de Pompe en Ingénierie Mécanique: Naviguer dans le Labyrinthe

Choisir la bonne pompe pour une application spécifique peut être une tâche ardue, en particulier pour ceux qui débutent dans le domaine. Avec un large éventail de types de pompes disponibles, allant des centrifuges aux rotatives et aux alternatives, il est facile de se perdre dans le labyrinthe des choix. Cet article vise à éclairer cet aspect crucial de l'ingénierie mécanique, en fournissant un guide pratique pour la sélection des pompes.

Comprendre les Bases:

La première étape vers une sélection de pompe efficace consiste à comprendre les principes fondamentaux de la classification des pompes. Les pompes sont généralement classées en fonction de leur mécanisme de fonctionnement :

  • Pompes centrifuges: Ces pompes utilisent une roue à aubes tournante pour créer une pression et déplacer les fluides. Elles sont connues pour leurs débits élevés et sont couramment utilisées dans diverses applications telles que l'approvisionnement en eau, les procédés industriels et les systèmes CVC.
  • Pompes rotatives: Ces pompes utilisent un élément rotatif pour déplacer le fluide, atteignant à la fois une pression élevée et des débits élevés. Elles sont souvent préférées pour le traitement des fluides visqueux et sont utilisées dans des applications telles que l'extraction pétrolière et gazière, le traitement chimique et la production alimentaire.
  • Pompes alternatives: Ces pompes utilisent un piston ou un plongeur alternatif pour déplacer les fluides. Elles excellent dans la réalisation de pressions extrêmement élevées et sont couramment utilisées dans des applications telles que les systèmes hydrauliques, les pompes de puits d'eau et les procédés industriels exigeant une distribution précise des fluides.

Naviguer dans les Choix:

Une fois que vous comprenez les types de base de pompes, le véritable défi réside dans la sélection de la pompe la plus adaptée à vos besoins spécifiques. Des facteurs tels que le débit, les exigences de pression, les propriétés du liquide, les conditions de fonctionnement et même le coût deviennent des considérations cruciales.

Prioriser Votre Sélection:

Face à une variété d'options de pompes, il est essentiel de prioriser votre sélection en fonction de vos besoins spécifiques:

  1. Pompes centrifuges: Ce sont généralement les choix les plus économiques et sont souvent adaptés à un large éventail d'applications.
  2. Pompes rotatives: Ce sont un bon choix lorsque des pressions élevées ou des fluides visqueux sont impliqués.
  3. Pompes alternatives: Elles sont utilisées lorsque des pressions extrêmement élevées sont requises ou lorsque la distribution précise des fluides est essentielle.

Au-delà des Bases:

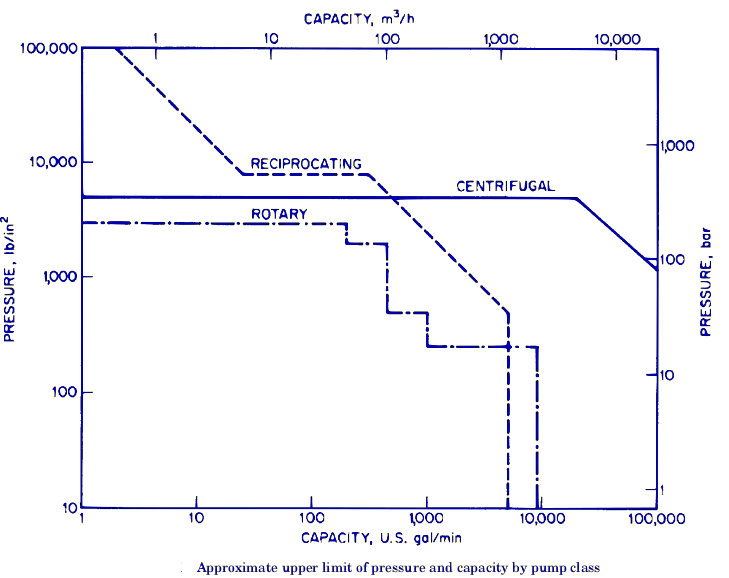

Alors que le tableau de pression et de capacité fournit un aperçu utile, d'autres facteurs doivent être pris en compte:

  • Propriétés du liquide: Des facteurs tels que la viscosité, la température et la corrosivité peuvent influencer le choix de la pompe.
  • Auto-amorçage: Cela fait référence à la capacité d'une pompe à aspirer le liquide d'un niveau inférieur. C'est crucial pour les applications où une aspiration est requise.
  • Traitement de l'air: Certaines pompes sont conçues pour traiter des mélanges d'air ou de vapeur, ce qui peut être important pour des applications telles que l'élimination du condensat ou le pompage de liquides volatils.
  • Résistance à l'abrasion: Certaines applications nécessitent des pompes résistantes aux matériaux abrasifs.
  • Exigences de contrôle: Les pompes peuvent nécessiter différents systèmes de contrôle en fonction de l'application.

Conclusion:

La sélection de pompe en ingénierie mécanique est un processus complexe qui nécessite une considération attentive de plusieurs facteurs. En comprenant les différents types de pompes, en utilisant des aides visuelles et en priorisant vos besoins, vous pouvez naviguer efficacement dans ce labyrinthe de choix et choisir la bonne pompe pour votre application. N'oubliez pas qu'une sélection éclairée garantit des performances optimales, une efficacité et une longévité pour votre système.


Test Your Knowledge

Pump Selection Quiz

Instructions: Choose the best answer for each question.

1. Which type of pump is most commonly used for water supply in residential areas?

a) Rotary pump b) Reciprocating pump c) Centrifugal pump

Answer

c) Centrifugal pump

2. What is a key advantage of rotary pumps over centrifugal pumps?

a) Lower initial cost b) Ability to handle highly viscous fluids c) High flow rates

Answer

b) Ability to handle highly viscous fluids

3. Which of the following factors is NOT typically considered when selecting a pump?

a) Liquid viscosity b) Pump operating noise level c) Pump color

Answer

c) Pump color

4. What does "self-priming" refer to in pump selection?

a) The pump's ability to operate without a motor b) The pump's ability to draw liquid from a lower level c) The pump's ability to handle air or vapor mixtures

Answer

b) The pump's ability to draw liquid from a lower level

5. Which type of pump is best suited for applications requiring extremely high pressure?

a) Centrifugal pump b) Rotary pump c) Reciprocating pump

Answer

c) Reciprocating pump

Pump Selection Exercise

Scenario: You need to select a pump for a water treatment plant that requires a flow rate of 1000 gallons per minute (GPM) and a head of 150 feet. The liquid being pumped is water with a viscosity similar to that of pure water.

Task:

  1. Based on the provided information, identify the most suitable pump type for this application.
  2. Explain your reasoning for choosing that pump type.
  3. List two additional factors you would consider when making a final pump selection for this application.

Exercice Correction

**1. Most Suitable Pump Type:** Centrifugal pump **2. Reasoning:** * **Flow Rate:** Centrifugal pumps are well-suited for high flow rate applications like water treatment plants. * **Head:** The required head of 150 feet is within the typical operating range of many centrifugal pumps. * **Liquid Properties:** Water's low viscosity and non-abrasive nature make it well-suited for handling by centrifugal pumps. **3. Additional Factors:** * **Efficiency:** Compare the efficiency of different centrifugal pumps to minimize energy consumption and operating costs. * **Maintenance Requirements:** Consider the long-term maintenance needs and spare parts availability for the chosen pump model.


Books

  • Pump Handbook (4th Edition) by Igor J. Karassik, William C. Krutzsch, Joseph P. Fraser, and John P. Messina: A comprehensive guide covering pump theory, selection, operation, maintenance, and troubleshooting.
  • Centrifugal Pumps: Design and Application (2nd Edition) by A. J. Stepanoff: A classic text focusing on centrifugal pump design, performance analysis, and applications.
  • Pumps: Selection, Operation, and Maintenance by Terry S. Andresen: A practical resource covering the fundamentals of pump technology, selection criteria, and practical tips for maintenance.
  • Fluid Mechanics, 10th Edition by Frank M. White: While not specifically focused on pumps, this textbook provides a strong foundation in fluid mechanics principles essential for understanding pump operation.

Articles

  • "Pump Selection: A Practical Guide" by Engineering360: A concise overview of key considerations for pump selection.
  • "Pump Selection: A Step-by-Step Approach" by Pumps & Systems: A detailed breakdown of the pump selection process, including factors to consider.
  • "How to Choose the Right Pump for Your Application" by Flow Control: A practical guide focusing on different pump types and their applications.

Online Resources


Search Tips

  • Use specific keywords: Instead of just "pump selection," try phrases like "centrifugal pump selection criteria," "rotary pump applications," or "reciprocating pump advantages."
  • Include your specific application: For example, "pump selection for water supply," "pump selection for chemical processing," or "pump selection for HVAC systems."
  • Use advanced search operators: Use "+" to include specific words, "-" to exclude words, and "" to search for an exact phrase.
  • Explore related searches: Look at Google's "People also ask" and "Related searches" sections to uncover additional relevant resources.

Techniques

Pump Selection in Mechanical Engineering: A Comprehensive Guide

This guide expands on the initial text, breaking down the topic of pump selection into distinct chapters for clarity and depth.

Chapter 1: Techniques for Pump Selection

This chapter focuses on the methodologies and calculations involved in selecting an appropriate pump.

1.1 Defining Requirements: The first step involves meticulously defining the application's needs. This includes:

  • Flow Rate (Q): The volume of fluid to be moved per unit time (e.g., gallons per minute, liters per second). This is often the most critical parameter.
  • Total Dynamic Head (TDH): The total energy required to lift and move the fluid, considering friction losses, elevation changes, and pressure requirements at the discharge point. Accurate TDH calculation is crucial.
  • Fluid Properties: Viscosity, density, temperature, corrosiveness, abrasiveness, and presence of solids significantly impact pump selection. Detailed fluid analysis is often necessary.
  • Operating Conditions: Ambient temperature, altitude, and potential for cavitation need to be considered.
  • Suction Conditions: Availability of NPSH (Net Positive Suction Head) is critical, especially for centrifugal pumps to avoid cavitation.

1.2 Hydraulic Calculations: Using the defined requirements, engineers perform calculations to determine the necessary pump performance characteristics. These calculations often involve:

  • System Curves: Generating a system curve that plots the head against the flow rate for the entire piping system.
  • Pump Curves: Obtaining pump curves (head vs. flow rate) from manufacturers' data for different pump models.
  • Matching Curves: Superimposing the system curve and pump curves to identify the operating point (intersection of the two curves). This indicates the pump's flow rate and head at the operating conditions.

1.3 Efficiency Considerations: Selecting a pump with high efficiency is crucial for minimizing energy consumption and operational costs. The efficiency of a pump is typically expressed as a percentage. Factors impacting efficiency include:

  • Pump Type: Different pump types exhibit varying efficiency levels.
  • Operating Point: Pumps operate most efficiently at their best efficiency point (BEP).
  • Maintenance: Regular maintenance is essential for maintaining high pump efficiency.

Chapter 2: Pump Models and Types

This chapter categorizes and explains different pump models, detailing their applications and limitations.

2.1 Centrifugal Pumps:

  • Radial Flow: Fluid flows radially outwards from the impeller. Common, versatile, and suitable for moderate head and flow rates. Sub-types include single-stage and multi-stage pumps.
  • Axial Flow: Fluid flows parallel to the shaft. High flow rates, low head, and ideal for applications requiring large volumes with minimal pressure increase.
  • Mixed Flow: Combines radial and axial flow characteristics. Suitable for medium to high flow rates and medium head applications.

2.2 Rotary Pumps:

  • Gear Pumps: Use meshing gears to displace fluid. Suitable for viscous fluids and high-pressure applications.
  • Lobe Pumps: Use rotating lobes to displace fluid. Similar applications to gear pumps but gentler on shear-sensitive fluids.
  • Screw Pumps: Use helical screws to move fluids. Suitable for high viscosity and high flow rates.
  • Vane Pumps: Use sliding vanes within a rotor to displace fluid. Good for both high and low viscosity fluids.

2.3 Reciprocating Pumps:

  • Plunger Pumps: Use a reciprocating plunger to displace fluid. High pressure capability, suitable for precise fluid delivery.
  • Diaphragm Pumps: Use a flexible diaphragm to displace fluid. Good for handling abrasive or corrosive fluids.

Chapter 3: Pump Selection Software and Tools

This chapter covers the software and tools used to aid in pump selection.

3.1 Pump Selection Software: Many commercial software packages simplify pump selection by automating calculations, providing extensive databases of pump models, and generating performance curves. Examples include:

  • [List specific software packages and briefly describe their features].

3.2 Online Calculators and Resources: Numerous online calculators and resources are available for performing basic pump selection calculations. However, these should be used cautiously and ideally verified with more detailed analysis.

3.3 Computer-Aided Design (CAD) Software: CAD software allows for modeling of the entire pumping system, including piping, valves, and other components, to better understand the system's hydraulics.

Chapter 4: Best Practices for Pump Selection and Operation

This chapter outlines best practices for ensuring optimal pump performance and longevity.

4.1 System Design: Proper system design is crucial for efficient pump operation. This includes:

  • Piping Design: Minimizing friction losses through proper pipe sizing and layout.
  • Valve Selection: Choosing appropriate valves for flow control and pressure regulation.
  • Suction Line Design: Ensuring adequate NPSH availability.

4.2 Pump Installation: Correct installation is vital for preventing damage and ensuring optimal performance. This includes:

  • Proper Alignment: Ensuring proper alignment between the pump and motor.
  • Baseplate: Using a robust baseplate for vibration damping.
  • Piping Connections: Secure and leak-free piping connections.

4.3 Maintenance: Regular maintenance is essential for preventing failures and maximizing pump lifespan. This includes:

  • Regular Inspections: Checking for leaks, wear, and vibration.
  • Lubrication: Maintaining proper lubrication of bearings and seals.
  • Cleaning: Cleaning the pump and suction strainer regularly.

Chapter 5: Case Studies in Pump Selection

This chapter presents real-world examples illustrating the pump selection process.

5.1 Case Study 1: Water Supply System: Describe the selection of pumps for a municipal water supply system, highlighting the importance of flow rate, head, and efficiency.

5.2 Case Study 2: Chemical Process Plant: Discuss the pump selection for a chemical process plant, focusing on the need to handle corrosive and potentially hazardous fluids.

5.3 Case Study 3: Oil and Gas Industry: Detail the choice of pumps for an oil and gas extraction application, considering the high viscosity and potential for abrasive materials.

This expanded structure provides a more thorough and comprehensive guide to pump selection in mechanical engineering. Remember to always consult with experienced engineers and manufacturers for complex applications.
