Stratigraphic Trap

Les Trésors Cachés: Comprendre les Pièges Stratigraphiques dans l'Exploration Pétrolière et Gazière

Dans la quête du pétrole et du gaz, les explorateurs recherchent des formations connues sous le nom de "pièges", où les hydrocarbures peuvent s'accumuler et être commercialement viables. Un type de piège, et une source importante de découvertes de pétrole et de gaz, est le **piège stratigraphique**.

**Qu'est-ce qu'un Piège Stratigraphique ?**

Les pièges stratigraphiques sont formés par des **changements dans les couches de roche (strates)**, créant une barrière naturelle qui empêche les hydrocarbures de migrer vers le haut et de s'échapper. Ces changements peuvent se produire en raison de :

  • **Diminutions de la Porosité et de la Perméabilité :** Imaginez une éponge. Si vous la comprimez, sa capacité à retenir l'eau (porosité) et à permettre à l'eau de la traverser (perméabilité) diminue. De même, dans les formations rocheuses sédimentaires, les changements de pression, de température ou les processus géologiques peuvent réduire la nature poreuse de la roche, formant une barrière imperméable. Cela emprisonne les hydrocarbures en dessous.
  • **Changements Latéraux ou Verticaux de la Lithologie :** La lithologie fait référence aux caractéristiques physiques des roches. Des changements dans la lithologie, comme une transition d'un grès poreux à une argile moins poreuse, peuvent créer un sceau empêchant le mouvement ascendant des hydrocarbures.
  • **Pinchouts ou Troncatures :** Ces derniers se produisent lorsqu'une couche de réservoir s'amincit progressivement ou se termine brusquement, formant une barrière à la migration des hydrocarbures.

**Exemples de Pièges Stratigraphiques :**

  • **Discordances :** Une rupture dans les archives géologiques où les roches plus anciennes sont directement recouvertes de roches beaucoup plus jeunes. La surface de la discordance agit comme un sceau, piégeant les hydrocarbures dans le réservoir sous-jacent.
  • **Pinchouts :** Une couche de réservoir qui s'amincit progressivement jusqu'à ce qu'elle ne soit plus assez poreuse pour retenir les hydrocarbures.
  • **Récifs :** Ces structures anciennes construites par des organismes marins créent des roches carbonatées poreuses qui servent d'excellents réservoirs. Leurs bords forment souvent des barrières, empêchant toute migration supplémentaire.
  • **Dépôts de Chenaux :** Ces derniers sont formés par des rivières qui déposent des sédiments dans une forme de chenal. Les bords du chenal peuvent être imperméables, piégeant les hydrocarbures dans le chenal lui-même.

**Importance dans l'Exploration Pétrolière et Gazière :**

Les pièges stratigraphiques sont cruciaux dans l'exploration pétrolière et gazière car ils fournissent un moyen prévisible et fiable d'identifier les réservoirs potentiels. Ils sont souvent associés à des gisements majeurs de pétrole et de gaz dans le monde. En comprenant les processus géologiques qui créent ces pièges, les explorateurs peuvent identifier les zones présentant un fort potentiel d'accumulation d'hydrocarbures.

**Défis et Innovations :**

Bien que les pièges stratigraphiques soient des cibles précieuses, leur exploration présente des défis. Des technologies de pointe telles que l'imagerie sismique, la modélisation 3D et la diagraphie de puits à haute résolution sont utilisées pour cartographier et caractériser avec précision ces pièges, minimisant les risques d'exploration et maximisant les taux de réussite.

**Conclusion :**

Les pièges stratigraphiques sont un exemple fascinant de la façon dont les processus géologiques créent des réservoirs pour nos ressources énergétiques. En comprenant leur formation et en identifiant leurs caractéristiques, l'industrie pétrolière et gazière peut continuer à débloquer les trésors cachés sous la surface de la Terre.

Test Your Knowledge

Quiz: Stratigraphic Traps in Oil & Gas Exploration

Instructions: Choose the best answer for each question.

1. What is a stratigraphic trap?

(a) A trap formed by the movement of tectonic plates (b) A trap formed by changes in rock layers (c) A trap formed by volcanic activity (d) A trap formed by the presence of salt

Answer

The correct answer is **(b) A trap formed by changes in rock layers.** Stratigraphic traps are created by variations in the rock layers themselves.

2. Which of the following is NOT a factor that can create a stratigraphic trap?

(a) Decreases in porosity and permeability (b) Lateral or vertical changes in lithology (c) Pinchouts or truncations (d) The presence of faults

Answer

The correct answer is **(d) The presence of faults.** While faults can play a role in oil and gas accumulation, they are primarily associated with structural traps, not stratigraphic traps.

3. What is an unconformity?

(a) A type of rock that is particularly porous (b) A break in the geological record where older rocks are directly overlain by much younger rocks (c) A type of fold in the Earth's crust (d) A type of sediment that is easily eroded

Answer

The correct answer is **(b) A break in the geological record where older rocks are directly overlain by much younger rocks.** Unconformities are significant features in stratigraphy and can act as seals in stratigraphic traps.

4. Why are stratigraphic traps important in oil and gas exploration?

(a) They are easily identifiable from the surface (b) They are always associated with large reserves of oil and gas (c) They provide a predictable and reliable way to identify potential reservoirs (d) They are the only type of trap that can contain hydrocarbons

Answer

The correct answer is **(c) They provide a predictable and reliable way to identify potential reservoirs.** Stratigraphic traps offer a consistent and predictable way to find potential oil and gas accumulations.

5. What is a challenge associated with exploring stratigraphic traps?

(a) They are often located in remote areas (b) They can be difficult to map and characterize accurately (c) They are often associated with complex geological structures (d) All of the above

Answer

The correct answer is **(d) All of the above.** Exploring stratigraphic traps can involve several challenges, including location, complex mapping, and intricate geological features.

Exercise: Identifying Stratigraphic Traps

Scenario: You are a geologist working for an oil and gas exploration company. You are studying a subsurface geological map of a region with potential for hydrocarbon accumulation. The map shows a sequence of sedimentary rock layers:

  • Layer A: Shale (impermeable)
  • Layer B: Sandstone (porous and permeable)
  • Layer C: Limestone (porous and permeable)
  • Layer D: Shale (impermeable)

Instructions:

  1. Identify potential stratigraphic traps that could exist in this sequence.
  2. Explain the reasoning behind your identification.
  3. Draw a simple diagram illustrating the potential traps.

Exercice Correction

Potential Stratigraphic Traps:

  1. Pinchout Trap: Layer B (Sandstone) could pinch out towards the right or left, creating a barrier and trapping hydrocarbons in Layer B.
  2. Unconformity Trap: If there is an unconformity between Layer C and Layer D, the unconformity surface could act as a seal, trapping hydrocarbons in Layer C.
  3. Lateral Lithologic Change Trap: If Layer B (Sandstone) changes laterally into a shale layer (Layer D), this change in lithology would create a barrier, trapping hydrocarbons in Layer B.

Reasoning:

  • Pinchout Trap: The gradual thinning or termination of a porous layer (Sandstone) creates an impermeable barrier, preventing upward migration of hydrocarbons.
  • Unconformity Trap: An unconformity represents a period of erosion and deposition, creating a surface that acts as a seal, trapping hydrocarbons beneath it.
  • Lateral Lithologic Change Trap: A change from a porous to an impermeable layer creates a lateral seal, trapping hydrocarbons within the porous layer.

Diagram:

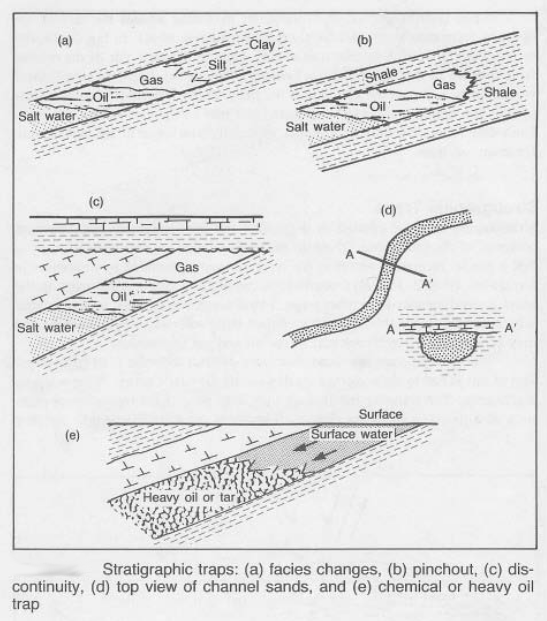

Diagram of stratigraphic traps

Books

  • Petroleum Geology: This comprehensive text covers various aspects of petroleum geology, including detailed sections on stratigraphic traps. Several authors have contributed to this field, so consider looking for recent editions from authors like:
    • Gary D. Roberts: His "Petroleum Geology" book is a highly regarded resource for students and professionals.
    • J.M. Hunt: His "Petroleum Geochemistry and Geology" provides insights into the formation and migration of hydrocarbons.
    • William D. Rose: His "Petroleum Geology" offers a detailed exploration of sedimentary basins, reservoir rocks, and trap types.
  • Reservoir Characterization: Books focusing on reservoir characterization often include sections on stratigraphic traps, exploring their formation and how to identify them. Examples include:
    • Reservoir Geophysics: By R.G. Worthing
    • Reservoir Sedimentology: By Gary Kocurek and Albert Galloway
  • Exploration Geophysics: Books in this field often cover seismic interpretation and its application in identifying stratigraphic traps. Some examples include:
    • Interpretation of 3D Seismic Data: By A.P. Hartley
    • Seismic Data Acquisition and Processing: By A.T. Buller

Articles

  • AAPG Bulletin: The American Association of Petroleum Geologists (AAPG) publishes articles covering various aspects of petroleum geology, including papers dedicated to specific types of stratigraphic traps. Search for keywords like "stratigraphic trap," "unconformity trap," "pinchout trap," etc.
  • Journal of Petroleum Geology: This journal is a reliable source for articles on various topics related to petroleum geology, with many articles discussing stratigraphic traps.
  • Search in Google Scholar: Use keywords like "stratigraphic trap types," "stratigraphic trap recognition," "seismic interpretation of stratigraphic traps," and "examples of stratigraphic traps" to find specific articles.

Online Resources

  • AAPG Website: The AAPG website hosts a library of publications, including technical papers and presentations relevant to stratigraphic traps.
  • SEG Website: The Society of Exploration Geophysicists (SEG) website provides resources on seismic data interpretation, which is crucial for recognizing stratigraphic traps.
  • USGS Publications: The United States Geological Survey (USGS) publishes reports and articles related to geological mapping and resource assessment, often including information about stratigraphic traps.

Search Tips

  • Use Specific Keywords: Employ terms like "stratigraphic trap examples," "stratigraphic trap formation," "stratigraphic trap types," etc., for targeted search results.
  • Combine Keywords: Combine keywords with specific geographical locations, such as "stratigraphic traps North Sea" or "stratigraphic traps Gulf of Mexico," to find relevant research.
  • Use Boolean Operators: Use "AND," "OR," and "NOT" operators to refine your search. For instance, "stratigraphic trap AND seismic interpretation" would yield results focusing on the use of seismic data in identifying stratigraphic traps.
  • Explore Images: Utilize Google Image Search to visually understand the different types of stratigraphic traps and how they form.

Techniques

Chapter 1: Techniques for Identifying Stratigraphic Traps

This chapter delves into the techniques used by geologists and geophysicists to identify and characterize stratigraphic traps.

1.1 Seismic Surveys: Unveiling the Earth's Structure

  • 2D and 3D Seismic Reflection: Sound waves are emitted into the Earth, and their reflections are recorded to create images of subsurface structures. These images reveal the presence of rock layers, folds, faults, and other geological features that could potentially form stratigraphic traps.
  • Seismic Attributes: Analyzing seismic data beyond simple reflection amplitudes, using attributes like curvature, coherence, and impedance, helps distinguish different rock types and identify subtle changes in lithology that could indicate traps.
  • Time-Lapse Seismic: Monitoring seismic activity over time allows for the detection of changes in reservoir fluids, indicating potential hydrocarbon accumulations.

1.2 Well Logging: Probing the Subsurface Directly

  • Electrical Logs: These measure the electrical properties of rocks, helping differentiate between different rock types and identify potential reservoir zones.
  • Sonic Logs: These measure the speed of sound through rocks, providing information on porosity and lithology.
  • Gamma Ray Logs: These measure the natural radioactivity of rocks, indicating the presence of shale and other potential seal rocks.
  • Core Analysis: Physical samples of rocks are retrieved from wells and analyzed in the lab to determine porosity, permeability, and other properties relevant to hydrocarbon storage and flow.

1.3 Basin Analysis: Understanding Regional Geology

  • Geological Mapping: Analyzing surface geological features, like outcrops and formations, helps understand the regional geological context and potential for stratigraphic traps.
  • Paleogeographic Reconstruction: Reconstructing the ancient geography and climate helps determine the depositional environments where potential reservoir rocks could have formed.
  • Geochemical Analysis: Studying the composition of rocks and fluids helps determine the origin and migration paths of hydrocarbons, aiding in trap identification.

1.4 Integrated Interpretation: Combining Data for Insights

  • 3D Modeling: Seismic, well log, and geological data are integrated to create a comprehensive 3D model of the subsurface, allowing for visualization and analysis of potential traps.
  • Reservoir Simulation: This involves using computer models to simulate the flow of fluids through the reservoir, helping to understand the potential production capacity of a trap.

Conclusion:

These techniques, applied individually or in combination, provide the tools needed to identify and evaluate potential stratigraphic traps. By understanding the geological processes that create these traps and employing advanced technologies, explorers can increase the success rate of discovering valuable oil and gas resources.
