Les hydrocyclones, également appelés cyclones, sont des équipements polyvalents largement utilisés dans l'industrie pétrolière et gazière. Ce sont essentiellement des appareils en forme de cône qui exploitent la force centrifuge pour séparer les fluides et les particules solides dispersées en leur sein. Ce processus de séparation est crucial pour diverses opérations, notamment :
1. Élimination du sable :
Les hydrocyclones sont essentiels pour éliminer le sable et autres particules solides des fluides produits (pétrole, gaz et eau) avant qu'ils n'atteignent les équipements de traitement en aval. Ces solides peuvent provoquer de l'abrasion, des blocages et même endommager des équipements précieux. En faisant tourner rapidement le fluide, les particules de sable plus lourdes sont projetées vers l'extérieur et se déposent au fond du cône, tandis que les fluides plus légers sont évacués par le haut.
2. Désablage :
Le désablage est une étape cruciale dans le traitement de l'eau produite avant qu'elle ne puisse être rejetée en toute sécurité ou réutilisée. Les hydrocyclones éliminent efficacement le sable, la vase et autres solides de l'eau, réduisant le risque de colmatage et améliorant la qualité globale de l'eau.
3. Déshydratation :
Les hydrocyclones peuvent être utilisés pour séparer l'eau du pétrole et du gaz, réduisant ainsi la teneur en eau des fluides produits. Ce processus, appelé déshydratation, est essentiel pour optimiser l'efficacité du traitement en aval et maximiser la valeur des hydrocarbures extraits.
4. Élimination des solides des fluides de forage :
Les fluides de forage, utilisés pour lubrifier et refroidir les mèches de forage, peuvent être contaminés par des solides pendant les opérations de forage. Les hydrocyclones éliminent efficacement ces solides, garantissant le bon fonctionnement et la sécurité du processus de forage.
Fonctionnement :
Le principe de fonctionnement des hydrocyclones est simple mais efficace :
Avantages des hydrocyclones :
Conclusion :
Les hydrocyclones sont des outils essentiels dans l'industrie pétrolière et gazière, jouant un rôle crucial dans diverses opérations, de l'élimination du sable à la déshydratation. Leur conception simple, leur grande efficacité et leur rentabilité en font des éléments essentiels pour assurer le bon fonctionnement et la fiabilité des installations pétrolières et gazières, contribuant ainsi à la production efficace et sûre de ressources précieuses.
Instructions: Choose the best answer for each question.
1. What is the primary function of a hydrocyclone?
a) To mix fluids and solids b) To separate fluids and solids c) To heat fluids d) To cool fluids
b) To separate fluids and solids
2. Which of the following is NOT a common application of hydrocyclones in the oil and gas industry?
a) Sand removal b) Desanding c) Dehydration d) Water injection
d) Water injection
3. What force is primarily responsible for the separation process in a hydrocyclone?
a) Gravity b) Magnetic force c) Centrifugal force d) Electrostatic force
c) Centrifugal force
4. Which of the following is an advantage of using hydrocyclones?
a) High maintenance requirements b) Low separation efficiency c) High capital investment costs d) Simplicity and low maintenance
d) Simplicity and low maintenance
5. How does the fluid enter a hydrocyclone?
a) From the bottom, vertically b) From the top, vertically c) Tangentially, creating a swirl d) Horizontally, without any swirl
c) Tangentially, creating a swirl
Scenario: You are working on a drilling rig and the drilling mud is becoming too thick due to excessive solid particles. A hydrocyclone is used to remove these solids. Explain how the hydrocyclone would work in this scenario to improve the drilling fluid.

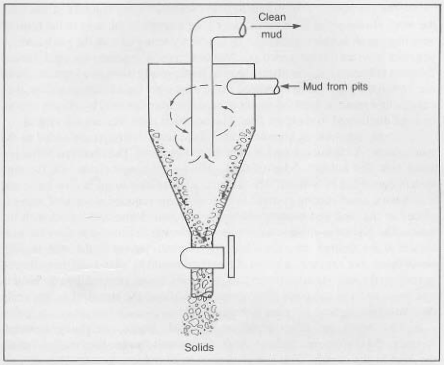

The drilling mud is pumped into the hydrocyclone tangentially, creating a swirling motion. This swirling motion generates centrifugal force, which pushes the heavier solid particles outwards towards the wall of the cone. These solids then settle at the bottom of the cone and are discharged as a concentrated stream, known as the underflow. The lighter, cleaner drilling fluid exits the top of the cone, known as the overflow, and is recirculated back into the drilling system. This process effectively removes the excess solids from the drilling mud, reducing its viscosity and improving its ability to lubricate and cool the drill bit.
This guide breaks down the crucial aspects of hydrocyclones in the oil and gas industry, covering techniques, models, software, best practices, and case studies.
Chapter 1: Techniques
The effectiveness of a hydrocyclone hinges on understanding and optimizing several key techniques:
Tangential Inlet Design: The angle and geometry of the tangential inlet significantly influence the vortex formation and separation efficiency. Precise design is crucial for maximizing centrifugal force and minimizing pressure loss. Variations include single-inlet, multiple-inlet, and spiral-inlet designs, each with its own advantages depending on the application and particle size distribution.
Vortex Finder and Apex Design: The shape and size of the vortex finder (the central tube) controls the overflow rate of the clarified fluid. The apex design influences the underflow concentration and discharge. Optimizing these elements is key to achieving the desired separation sharpness.
Underflow and Overflow Discharge Configurations: The design and placement of the underflow and overflow discharge points affect the separation efficiency and pressure drop. Precise control over these parameters is crucial to avoid recirculation and maintain the desired separation. Techniques like using adjustable spouts or vortex breakers can enhance separation.
Pressure Control and Optimization: The inlet pressure significantly impacts the centrifugal force and consequently, the separation efficiency. Optimizing pressure is critical and often involves balancing efficiency against energy consumption. Techniques like pressure regulation valves and monitoring systems help achieve this.
Chapter 2: Models
Various hydrocyclone models exist, each tailored to specific applications and fluid characteristics:
Conventional Hydrocyclones: These are the most common type, characterized by their simple conical shape and relatively low pressure drop. They are effective for a wide range of applications but may not be optimal for very fine particle separation.
High-efficiency Hydrocyclones: These designs incorporate features like optimized vortex finders and improved inlet geometries to achieve higher separation efficiencies, especially for finer particles. They often have higher pressure drops than conventional designs.
Multi-stage Hydrocyclones: These systems connect multiple hydrocyclones in series, increasing the overall separation efficiency. Each stage handles a specific particle size range, improving the overall removal of solids.
Specialized Hydrocyclones: Specialized designs cater to specific needs, such as those used for high-viscosity fluids or those incorporating magnetic fields for enhanced separation of magnetic particles.
Chapter 3: Software
Computational Fluid Dynamics (CFD) software plays a vital role in hydrocyclone design and optimization:
CFD Simulation: Software such as ANSYS Fluent, COMSOL Multiphysics, and OpenFOAM allow engineers to simulate the fluid flow and particle separation within a hydrocyclone. This helps optimize design parameters and predict performance before physical construction.
Particle Tracking: Specialized modules within CFD software track the movement of individual particles, enabling accurate prediction of separation efficiency and particle size distribution in the underflow and overflow streams.
Optimization Algorithms: These tools automate the design optimization process, exploring different design parameters to identify the optimal configuration based on specified performance criteria.
Chapter 4: Best Practices
Effective hydrocyclone operation requires adherence to best practices:
Regular Inspection and Maintenance: Regular inspections are essential to identify and address potential issues like wear and tear, blockages, or leaks, ensuring continuous optimal performance. Preventive maintenance schedules should be implemented.
Feed Preparation: Proper preparation of the feed stream is crucial. This involves pre-screening to remove oversized particles that could damage the hydrocyclone and ensuring a consistent feed flow rate to maintain optimal separation.
Monitoring and Control: Continuous monitoring of key parameters like pressure, flow rate, and underflow/overflow concentrations allows for early detection of operational problems and enables timely adjustments.
Proper Material Selection: Selecting appropriate materials based on the corrosive nature of the fluids and the abrasive nature of the solids is vital to ensure the longevity of the hydrocyclone.
Chapter 5: Case Studies
Real-world examples demonstrate the versatility and effectiveness of hydrocyclones:
Case Study 1: Sand Removal from Produced Water: A case study could detail a specific oil and gas production facility where hydrocyclones were implemented to effectively remove sand from produced water, reducing downstream equipment wear and improving water discharge quality. Quantifiable results like percentage of sand removed and cost savings would be included.
Case Study 2: Dehydration of Crude Oil: Another case study could focus on the use of hydrocyclones for dehydrating crude oil, illustrating how these devices improved the efficiency of downstream processing and minimized the water content in the final product. Performance metrics such as water content reduction and throughput would be highlighted.
Case Study 3: Solids Removal from Drilling Fluids: A case study focusing on drilling operations would show how hydrocyclones significantly reduced solids content in drilling fluids, maintaining drilling efficiency and reducing the need for frequent fluid replacement. Metrics like reduced downtime and improved drilling rate could be presented.
This comprehensive guide offers a detailed understanding of hydrocyclones and their application in the oil and gas industry. By understanding the techniques, models, software, best practices, and case studies presented, engineers and operators can optimize their use and maximize efficiency.
