In the world of drilling and well completion, seemingly minor imperfections can have significant consequences. One such imperfection is the keyseat, a telltale sign of a drilling misadventure that can lead to costly downtime and operational challenges.
What is a Keyseat?

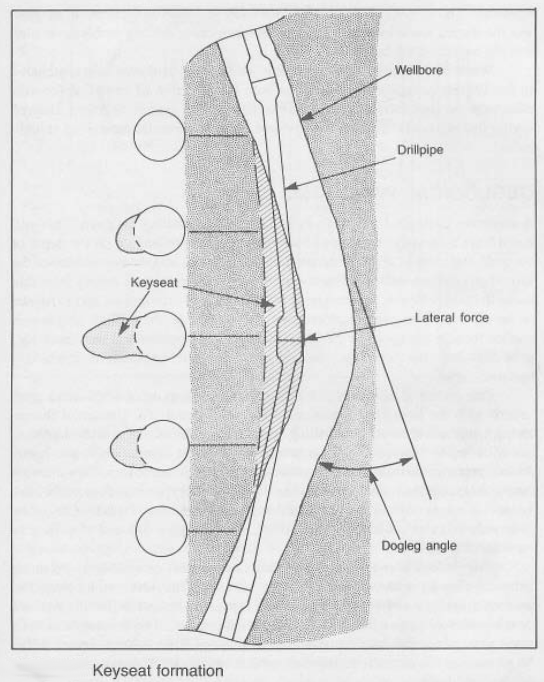

A keyseat is a specific type of wear in the borehole that results in an out-of-round shape, often resembling a keyhole. This occurs when the drill pipe, particularly in crooked or deviated wells, rubs against the side of the hole. The constant friction wears away the rock, creating a groove that widens with time and can extend several feet downhole.
Causes of Keyseats:
Problems Associated with Keyseats:
Mitigating Keyseat Formation:
Keyseats are a serious challenge in the drilling industry, capable of significantly impacting well operations and profitability. By understanding the causes and consequences of keyseats, operators can implement preventative measures and address the issue early on, minimizing their impact and ensuring smooth well completion.
Instructions: Choose the best answer for each question.
1. What is a keyseat?
(a) A type of drill bit used for specific rock formations. (b) A groove in the wellbore caused by the drill pipe rubbing against the side. (c) A specialized tool for cleaning debris from the wellbore. (d) A protective coating applied to drill pipe to reduce friction.
(b) A groove in the wellbore caused by the drill pipe rubbing against the side.
2. Which of the following is NOT a cause of keyseats?
(a) Crooked holes (b) Insufficient mud circulation (c) Use of a specific type of drilling mud (d) Mechanical issues with the drill bit
(c) Use of a specific type of drilling mud
3. What is a major problem associated with keyseats?
(a) Reduced drilling speed (b) Difficulty in running casing and tubing (c) Increased risk of wellbore collapse (d) Reduced lifespan of drilling mud
(b) Difficulty in running casing and tubing
4. Which of the following is a preventative measure to mitigate keyseat formation?
(a) Using a specialized type of drill bit (b) Increasing the drilling fluid density (c) Maintaining a precise well trajectory (d) Injecting chemicals into the wellbore
(c) Maintaining a precise well trajectory
5. What is a specialized tool used to address keyseats?
(a) Keyseat reamer (b) Keyseat cutter (c) Keyseat scraper (d) All of the above
(d) All of the above
Scenario: You are a drilling engineer working on a deviated well. During a routine wellbore inspection, you notice a keyseat starting to form. Explain the potential risks associated with this keyseat and describe three actions you would take to address the issue.
The keyseat poses several risks: * **Stuck pipe:** The keyseat's uneven shape could cause the drill pipe or larger casing/tubing to get stuck, leading to costly and time-consuming intervention. * **Increased friction and wear:** The uneven surface creates more friction, accelerating wear on the pipe and potentially leading to a catastrophic failure. * **Difficulty in future operations:** The keyseat can make running casing, tubing, or other downhole equipment difficult and risky. To address the issue, I would: 1. **Adjust the trajectory:** Carefully analyze the wellbore path and adjust the drilling trajectory slightly to reduce contact between the drill pipe and the wellbore wall, preventing further keyseat development. 2. **Optimize mud circulation:** Ensure sufficient mud circulation to effectively remove cuttings and prevent buildup. This will minimize the friction caused by debris and reduce wear on the drill pipe. 3. **Consider keyseat remediation tools:** If the keyseat is already significant, consider utilizing specialized keyseat reamers or cutters to reshape the wellbore and eliminate the groove. While keyseat remediation is a costly and time-consuming process, it may be necessary in some cases to prevent future complications and ensure a successful well completion.
