Gravity Survey

Test Your Knowledge

Quiz: Unveiling Earth's Secrets: The Power of Gravity Surveys

Instructions: Choose the best answer for each question.

1. What is the primary principle behind gravity surveys in hydrocarbon exploration?

a) Different rock types have different densities. b) The Earth's magnetic field varies across different locations. c) Seismic waves travel at different speeds through different rock types. d) The Earth's gravitational pull is strongest at the poles.

2. Which instrument is used to measure the minute differences in gravity during a survey?

a) Magnetometer b) Seismometer c) Gravimeter d) Spectrometer

3. Which of the following geological structures is NOT typically identified using gravity surveys?

a) Salt domes b) Basins c) Volcanic craters d) Faults

4. What is a major limitation of gravity surveys?

a) They cannot detect any structures below the Earth's surface. b) They are too expensive to implement for practical use. c) They are only effective in identifying small-scale structures. d) They are less effective in pinpointing smaller structures compared to large-scale features.

5. Besides hydrocarbon exploration, gravity surveys are also used for:

a) Predicting weather patterns. b) Mapping groundwater aquifers. c) Analyzing the composition of stars. d) Studying the behavior of animals.

Exercise: Interpreting Gravity Anomalies

Instructions:

You are a geophysicist studying a new area for potential hydrocarbon exploration. The following map shows a simplified gravity anomaly map of the region.

Map:

(Insert a simple image of a map with a few areas of positive and negative gravity anomalies)

Tasks:

1. Identify the areas with positive and negative gravity anomalies on the map.
2. Explain what each type of anomaly might suggest about the underlying geological structure.
3. Propose potential locations for further investigation (e.g., seismic surveys) based on your interpretation of the gravity anomalies.

Exercise Correction:

Techniques

Chapter 1: Techniques

Introduction

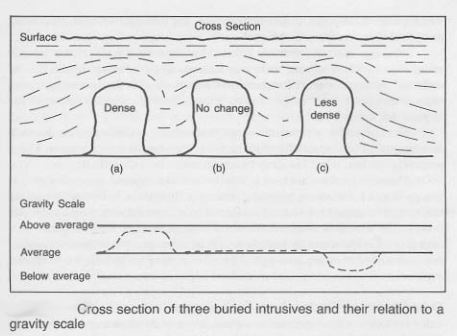

Gravity surveys are a geophysical technique that utilizes the variations in Earth's gravitational field to map out subsurface geological structures. The method relies on the principle that different rock types have different densities, and thus exert different gravitational pulls. This chapter delves into the specific techniques used in conducting gravity surveys.

Data Acquisition

• Gravimeter: The heart of a gravity survey is the gravimeter, a sensitive instrument that measures the minute differences in gravity. There are various types of gravimeters, including:
  • Absolute Gravimeters: Measure the absolute value of gravity at a specific location.
  • Relative Gravimeters: Measure the difference in gravity between two points.
• Data Collection: Gravimeters are typically deployed at a series of evenly spaced points across the survey area. Data is collected at each point, typically for a specific duration, to obtain an accurate measurement.
• Ground Surveys: Traditional gravity surveys involve the manual placement of gravimeters at specific locations. This method is labor-intensive but provides highly accurate data.
• Airborne Surveys: Airborne gravity surveys utilize aircraft equipped with gravimeters to collect data across larger areas. This method is faster and more cost-effective but can be less accurate than ground surveys.
• Satellite Surveys: Satellites equipped with gravimeters can provide global coverage, mapping large-scale variations in Earth's gravity. This method is crucial for understanding tectonic plate movements and other global geological processes.

Data Processing

• Corrections: Raw gravity data must be corrected for various factors that can affect the measurements, including:
  • Elevation Corrections: Variations in elevation can influence gravity readings.
  • Latitude Corrections: The Earth's shape and rotation affect gravity.
  • Tidal Corrections: The gravitational pull of the moon and sun can cause variations in gravity.
  • Topographic Corrections: The presence of mountains and valleys can affect gravity readings.
• Filtering and Analysis: Once corrected, the data is filtered to remove noise and other unwanted signals. Various analytical techniques are then employed to identify anomalies and interpret their geological significance.
• Modeling: Based on the processed data, geophysicists can create 3D models of the subsurface structure, which helps visualize the geological features responsible for the observed gravity anomalies.

Conclusion

The techniques used in gravity surveys, from data acquisition to processing and interpretation, play a crucial role in uncovering the Earth's secrets. By carefully measuring and analyzing subtle variations in gravity, geophysicists can map out hidden geological structures, contributing to a wide range of applications from hydrocarbon exploration to groundwater management.
