Fault Trap

Test Your Knowledge

Fault Traps Quiz

Instructions: Choose the best answer for each question.

1. What is a fault trap? a) A geological structure that allows hydrocarbons to escape. b) A type of rock formation that is impermeable to hydrocarbons. c) A geological structure that traps hydrocarbons and prevents their escape. d) A method used to extract hydrocarbons from the ground.

2. Which type of fault is most likely to form a fault trap? a) Normal Fault b) Reverse Fault c) Strike-Slip Fault d) All of the above

3. What is the significance of fault traps in oil and gas exploration? a) They indicate potential areas for oil and gas exploration. b) They provide a pathway for hydrocarbons to escape. c) They help to determine the type of rock formation present. d) They are not important in oil and gas exploration.

4. Which of the following is NOT a challenge associated with fault traps? a) Difficulty in predicting reservoir size and location. b) Potential for water or other fluids to contaminate the reservoir. c) The ease of extracting hydrocarbons from fault traps. d) The potential for complex fault structures.

5. Which of the following is an example of a major oil field associated with fault traps? a) The North Sea Oil Field b) The Prudhoe Bay Oil Field c) The Ghawar Oil Field d) All of the above

Fault Traps Exercise

Instructions: Imagine you are an oil and gas exploration geologist. You are studying a potential drilling site and have identified a fault that intersects a layer of porous rock.

Task: Explain how you would determine if this fault could be a potential fault trap. What geological factors would you investigate to assess the viability of this site for oil and gas exploration?

Techniques

Chapter 1: Techniques for Identifying Fault Traps

1.1 Seismic Surveys

• Principle: Seismic surveys utilize sound waves to map the subsurface geology. By analyzing the reflections and refractions of these waves, geologists can identify fault structures.
• Types: 2D and 3D seismic surveys provide increasingly detailed images of the subsurface.
• Advantages: High resolution imaging, capable of identifying complex fault geometries.
• Disadvantages: Expensive, time-consuming, interpretation requires expertise.

1.2 Well Logging

• Principle: Well logging involves sending various tools down a borehole to measure different physical properties of the rocks.
• Types:
  • Gamma Ray Logging: Identifies radioactive elements, indicating potential shale formations.
  • Resistivity Logging: Measures the electrical conductivity of rocks, helping to distinguish between porous and impermeable formations.
  • Sonic Logging: Determines the speed of sound through the rock, which can indicate the presence of faults.
• Advantages: Provides direct measurements of rock properties at the well location.
• Disadvantages: Limited to the wellbore, information can be limited by well deviation.

1.3 Geological Mapping

• Principle: Examining surface outcrops, analyzing rock formations, and studying the geological history of a region.
• Types: Surface mapping, structural analysis, paleontological studies.
• Advantages: Can provide valuable insights into the geological history of a region.
• Disadvantages: Can be limited by outcrop availability, relies on interpretation.

1.4 Other Techniques

• Gravity Surveys: Measure variations in gravity, indicating density differences in the subsurface.
• Magnetic Surveys: Detect changes in the Earth's magnetic field, which can indicate the presence of magnetic minerals associated with faults.
• Remote Sensing: Satellite images and aerial photography can help identify surface features related to fault structures.

1.5 Integrated Approach

• Combining multiple techniques allows for a comprehensive understanding of the subsurface and significantly improves the accuracy of identifying and characterizing fault traps.

Chapter 2: Models of Fault Trap Formation

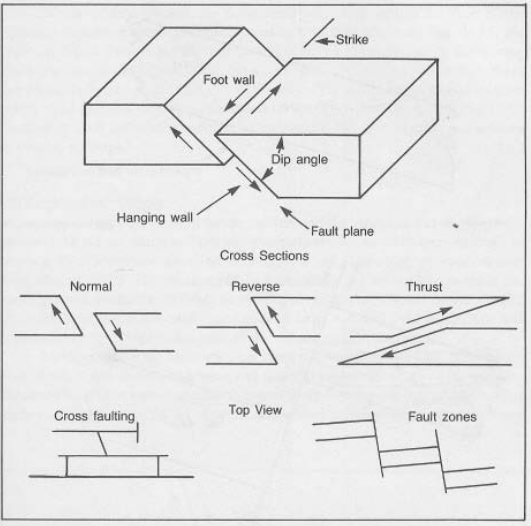

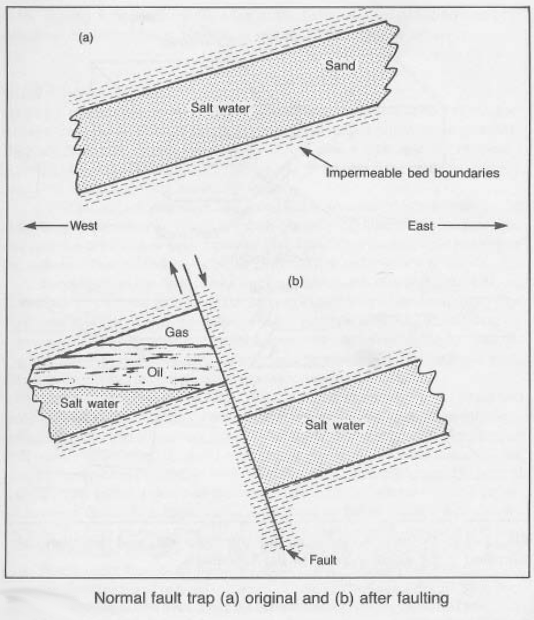

2.1 Normal Fault Traps

• Formation: Normal faults occur when the Earth's crust stretches and pulls apart, creating a tilted block of rock. The tilted block can form a reservoir, with the fault acting as a seal.
• Key Features: Dip-slip movement, tilted reservoir, hanging wall and footwall blocks.
• Examples: North Sea Oil Field, Prudhoe Bay Oil Field.

2.2 Reverse Fault Traps

• Formation: Reverse faults occur when the Earth's crust is compressed and rock layers slide over each other. The overlying rock can form a seal, trapping hydrocarbons in the underlying block.
• Key Features: Dip-slip movement, upthrown and downthrown blocks, possible juxtaposition of impermeable formations.
• Examples: Many fields in the Appalachian Basin, some fields in the Gulf of Mexico.

2.3 Strike-Slip Fault Traps

• Formation: Strike-slip faults involve horizontal movements of rock layers, creating fractures and pathways that can lead to the formation of traps elsewhere.
• Key Features: Lateral movement, possible juxtaposition of different rock types, formation of folds or anticlines.
• Examples: Some fields in the San Joaquin Valley of California, some fields in the Middle East.

2.4 Combination Traps

• Formation: Many fault traps involve a combination of different fault types and other geological features, creating complex structures.
• Key Features: Multiple faults, folds, unconformities, seals formed by different mechanisms.
• Examples: Ghawar Oil Field, many fields in complex geological settings.

Chapter 3: Software for Fault Trap Analysis

3.1 Seismic Interpretation Software

• Purpose: Analyze seismic data to identify fault structures, define reservoir boundaries, and estimate volume.
• Features: 2D/3D visualization, attribute analysis, fault detection algorithms, volumetric calculations.
• Examples: Petrel (Schlumberger), GeoGraphix (Landmark), Kingdom (IHS Markit).

3.2 Well Logging Software

• Purpose: Interpret well logging data to identify rock properties, correlate with seismic data, and define reservoir parameters.
• Features: Log analysis tools, depth matching, petrophysical calculations, wellbore visualization.
• Examples: Techlog (Schlumberger), Interactive Petrophysics (Halliburton), GeoFrame (Landmark).

3.3 Geological Modeling Software

• Purpose: Create 3D geological models of the subsurface, integrating data from seismic, well logs, and other sources.
• Features: Surface modeling, volume estimation, fault modeling, reservoir simulation.
• Examples: Petrel (Schlumberger), Gocad (Paradigm), GeoModeller (EarthDecision).

3.4 Other Software

• Reservoir Simulation Software: Simulate fluid flow in the reservoir, predict production performance, and optimize drilling plans.
• Geostatistical Software: Analyze spatial relationships of geological data, assess uncertainty, and create probabilistic models.

Chapter 4: Best Practices for Fault Trap Evaluation

4.1 Data Integration

• Importance: Combining data from different sources (seismic, well logs, geological mapping) to obtain a comprehensive understanding of the subsurface.
• Techniques:
  • Seismic-to-well tie: Aligning seismic data with well log information.
  • Correlation of different datasets: Identifying geological features in multiple data sources.

4.2 Fault Characterization

• Importance: Understanding fault geometry, displacement, and sealing capacity is crucial for reservoir assessment.
• Techniques:
  • Fault interpretation: Identifying fault planes, determining fault throw, and analyzing fault patterns.
  • Fault seal analysis: Evaluating the effectiveness of the fault as a seal to hydrocarbons.

4.3 Reservoir Characterization

• Importance: Defining the geometry, porosity, permeability, and fluid content of the reservoir.
• Techniques:
  • Petrophysical analysis: Deriving rock properties from well log data.
  • Reservoir simulation: Modeling fluid flow in the reservoir to estimate production potential.

4.4 Risk Assessment

• Importance: Quantifying uncertainties associated with the exploration and production of hydrocarbons.
• Techniques:
  • Probabilistic modeling: Using statistical methods to assess the likelihood of different outcomes.
  • Sensitivity analysis: Examining the impact of different parameters on the project outcome.

Chapter 5: Case Studies of Fault Trap Exploration and Production

5.1 The North Sea Oil Field

• Fault Type: Normal fault traps.
• Challenges: Complex fault network, high pressure reservoirs, harsh weather conditions.
• Successes: Development of advanced drilling and production technologies, significant oil and gas production.

5.2 The Ghawar Oil Field

• Fault Type: Combination of normal and reverse faults.
• Challenges: Vast size and complexity of the field, declining production rates.
• Successes: Long-term production, innovative reservoir management strategies.

5.3 The Prudhoe Bay Oil Field

• Fault Type: Normal fault trap.
• Challenges: Remote location, harsh Arctic environment, environmental concerns.
• Successes: Major contribution to Alaska's economy, significant oil production.

5.4 Other Notable Examples

• The Bakken Shale Play: Fault traps play a role in controlling the distribution of hydrocarbons in this shale formation.
• The Permian Basin: Complex fault systems contribute to the formation of various types of traps in this prolific oil and gas region.

5.5 Learning from Case Studies

• Case studies provide valuable lessons about the challenges and opportunities associated with fault trap exploration and production.
• Understanding the successes and failures of past projects can help improve future exploration and development strategies.
