The Backbone of Oil & Gas Production: Understanding Casing in Drilling & Well Completion

The process of extracting oil and gas from the Earth's depths is a complex and carefully orchestrated endeavor. One of the crucial components in this operation is casing, a critical element in well design that forms the very foundation of safe and efficient production.

What is Casing?

Casing refers to one or more strings of steel pipe, typically with threaded connections, that are lowered into the drilled wellbore. It acts as a barrier, preventing unwanted fluid movement between different geological formations and the surrounding environment. In essence, casing acts like a protective shield, ensuring that the wellbore remains stable and the extracted hydrocarbons reach the surface without contamination.

Why is Casing Essential?

Casing plays a vital role in multiple aspects of drilling and well completion:

  • Wellbore Stability: Casing provides structural support to the wellbore, preventing its collapse, particularly in unstable formations.
  • Fluid Control: Casing isolates different geological layers, preventing the mixing of fluids from various zones. This is crucial for efficient production and ensuring the integrity of the wellbore.
  • Environmental Protection: Casing prevents the migration of produced fluids, like oil or gas, into surrounding aquifers or other water sources, safeguarding the environment.
  • Safety: Casing contributes significantly to the overall safety of drilling and well completion operations by providing a stable and controlled environment.

Cementing the Casing:

To further enhance its effectiveness, casing is usually cemented in place. This process involves pumping a cement slurry between the casing and the borehole wall. The cement hardens and forms a solid, impermeable barrier that secures the casing and creates a permanent seal.

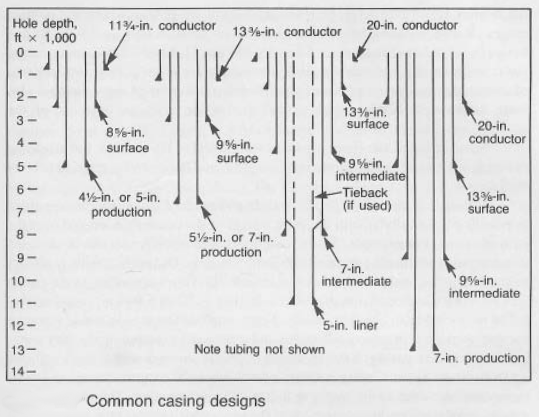

Types of Casing Strings:

Different well designs may require various casing strings, each serving a specific purpose:

  • Conductor Casing: The first casing string installed, it helps stabilize the upper portion of the wellbore and provides a pathway for drilling mud circulation.
  • Surface Casing: This string is set below the conductor casing and isolates freshwater zones from the wellbore.
  • Intermediate Casing: This casing is set in between the surface casing and the production casing, providing additional zonal isolation and further stabilizing the wellbore.
  • Production Casing: The final casing string, it isolates the producing zone and allows for the flow of hydrocarbons to the surface.

Conclusion:

Casing is a fundamental element in drilling and well completion, serving as the backbone of safe and efficient hydrocarbon production. Its role in ensuring wellbore stability, fluid control, environmental protection, and safety cannot be overstated. Understanding the different types of casing strings and their functionalities is crucial for anyone involved in the oil and gas industry. As we continue to explore and extract resources from the Earth's depths, the importance of casing in maintaining sustainable and responsible operations will only increase.


Test Your Knowledge

Casing Quiz:

Instructions: Choose the best answer for each question.

1. What is the primary function of casing in oil and gas drilling?

(a) To provide a pathway for drilling mud circulation (b) To isolate different geological layers and prevent fluid mixing (c) To stabilize the wellbore and prevent collapse (d) All of the above

Answer

The correct answer is (d) All of the above.

2. Which type of casing is typically installed first?

(a) Production casing (b) Surface casing (c) Intermediate casing (d) Conductor casing

Answer

The correct answer is (d) Conductor casing.

3. What is the main purpose of cementing the casing?

(a) To enhance the strength of the casing itself (b) To create a barrier between the casing and the borehole wall (c) To prevent corrosion of the casing (d) To reduce the weight of the casing string

Answer

The correct answer is (b) To create a barrier between the casing and the borehole wall.

4. Which of the following is NOT a benefit of using casing in well drilling?

(a) Increased drilling speed (b) Improved wellbore stability (c) Enhanced environmental protection (d) Reduced risk of blowouts

Answer

The correct answer is (a) Increased drilling speed.

5. What is the primary purpose of the production casing?

(a) To isolate freshwater zones from the wellbore (b) To provide a pathway for drilling mud circulation (c) To isolate the producing zone and allow hydrocarbon flow to the surface (d) To stabilize the upper portion of the wellbore

Answer

The correct answer is (c) To isolate the producing zone and allow hydrocarbon flow to the surface.

Casing Exercise:

Scenario: You are working on a drilling project and the well plan includes the following casing strings:

  • Conductor Casing: 20-inch diameter, 80 feet deep
  • Surface Casing: 13 3/8-inch diameter, 1500 feet deep
  • Intermediate Casing: 9 5/8-inch diameter, 4000 feet deep
  • Production Casing: 7-inch diameter, 10,000 feet deep

Task: Create a simple diagram showing the placement of each casing string in the wellbore, indicating the depth of each string and the corresponding diameter.

Exercice Correction

Your diagram should show the casing strings stacked in the wellbore, starting with the conductor casing at the top and going down to the production casing at the bottom. Each string should be labeled with its diameter and depth. The diagram might look something like this:

|-------------| 20" - 80 feet (Conductor Casing) |-------------| 13 3/8" - 1500 feet (Surface Casing) |-------------| 9 5/8" - 4000 feet (Intermediate Casing) |-------------| 7" - 10,000 feet (Production Casing)

You can also use a more visual representation like a simple vertical line with the different casing sections labelled and sized appropriately. The key is to show the relative depths and diameters of each casing string.


Books

  • "Petroleum Engineering: Drilling and Well Completion" by William C. Lyons
  • "Drilling Engineering" by Robert F. Mitchell and Paul D. Valentine
  • "Fundamentals of Reservoir Engineering" by John C. Donaldson and Harold H. Ramey Jr.
  • "Well Completion Engineering" by Thomas F. Zaba and Robert M. Campbell

Articles

  • "Casing and Cementing Technology" by Society of Petroleum Engineers (SPE)
  • "Casing Design and Selection" by Schlumberger
  • "Casing Integrity: A Critical Review" by SPE
  • "The Importance of Casing in Well Construction" by Halliburton

Online Resources


Search Tips

  • "Casing design oil & gas"
  • "Casing installation procedures"
  • "Casing failure analysis"
  • "Casing cementing techniques"
  • "Types of casing strings"
  • "Casing inspection methods"
  • "Casing and environmental regulations"

Techniques

Chapter 1: Techniques in Casing Operations

This chapter details the various techniques employed during casing operations, focusing on the practical aspects of installation and cementing.

1.1 Casing Running:

The process of lowering the casing string into the wellbore is a crucial step. This involves carefully controlling the descent to avoid damage to the casing or the wellbore. Techniques include:

  • Free Fall: A faster method suitable for shorter strings and stable wellbores. Requires careful monitoring to prevent damage.
  • Controlled Descent: Uses a traveling block and crown block system, offering greater control over the lowering speed and preventing damage in challenging formations.
  • Casing Running Tools: Specialized tools are employed to guide the casing, manage tension, and facilitate connections. These may include elevators, slips, and power tongs.

1.2 Cementing:

Cementing the casing is essential for wellbore integrity and zonal isolation. This section covers various cementing techniques:

  • Primary Cementing: The initial cementing operation after casing placement. This uses a slurry pumped between the casing and the wellbore to form a solid seal. Factors influencing this include slurry design (density, rheology), placement techniques (displacement, centralizers), and zonal isolation requirements.
  • Secondary Cementing: Used to repair damaged primary cement jobs or to enhance zonal isolation. This may involve squeezing cement through perforations or using specialized techniques to reach specific zones.
  • Plug and Perf Cementing: A method where the cement is selectively placed in specific zones using plugs and perforations. This improves efficiency and minimizes cement usage.

1.3 Testing and Evaluation:

After cementing, testing is crucial to ensure the integrity of the casing and cement. Common techniques include:

  • Pressure Testing: Applying pressure to the casing to check for leaks in the cement or casing itself.
  • Cement Bond Logging: Measuring the bond strength between the cement and the casing, and the cement and formation.
  • Temperature Logging: Assessing the cement quality and identifying potential channels or voids.

Chapter 2: Casing Models and Design

This chapter discusses the various models and considerations involved in designing casing strings for specific well conditions.

2.1 Casing Selection:

The selection of appropriate casing is critical and depends on several factors:

  • Wellbore Geometry: Diameter, depth, and inclination of the wellbore influence casing size and grade.
  • Formation Pressure: The pressure exerted by the formations dictates the required casing strength and pressure rating.
  • Formation Properties: The strength and stability of the surrounding formations influence the need for support and isolation.
  • Fluid Properties: The type and properties of the fluids in the wellbore influence casing material selection (e.g., corrosion resistance).

2.2 Stress Analysis:

Analyzing the stress exerted on the casing is crucial to ensure its long-term integrity. This usually involves:

  • Finite Element Analysis (FEA): Sophisticated models used to predict casing stresses under various load conditions.
  • Simplified Analytical Models: Less computationally intensive models used for initial assessments.
  • Collapse and Burst Pressure Calculations: Determining the maximum pressure the casing can withstand before failure.

2.3 Casing String Design Optimization:

Optimizing casing string design involves balancing various factors, including cost, wellbore stability, and operational safety. This often requires iterative calculations and simulations to achieve the most suitable design.

Chapter 3: Software Used in Casing Design and Operations

This chapter covers the software applications used in casing design, analysis, and operations.

3.1 Casing Design Software:

Several specialized software packages are employed for casing design and analysis:

  • Well Engineering Software: Such as Landmark's OpenWorks, Schlumberger's Petrel, and similar packages, provide modules for casing design, stress analysis, and cement modeling.
  • FEA Software: Packages like ANSYS and Abaqus allow for detailed stress analysis of casing under complex loading conditions.

3.2 Data Acquisition and Management Software:

This includes software for gathering, processing, and interpreting data from downhole sensors and logging tools during and after casing operations. Examples include:

  • Logging Software: Used to interpret cement bond logs, temperature logs, and other downhole measurements.
  • Wellbore Surveying Software: Essential for accurate wellbore mapping and casing placement.

3.3 Simulation and Optimization Software:

Software packages can simulate the cementing process, predict cement placement, and optimize casing string designs to minimize risks and costs.

3.4 Data Visualization Tools: Tools and software for clear visualization of the wellbore, casing, and cement are necessary for effective analysis and decision-making.

Chapter 4: Best Practices in Casing Operations

This chapter highlights best practices for safe and efficient casing operations.

4.1 Planning and Preparation:

Thorough planning is essential, including:

  • Well Design Review: Careful review of the well design parameters to ensure appropriate casing selection and placement.
  • Risk Assessment: Identifying potential hazards and implementing mitigation measures.
  • Material Selection and Quality Control: Ensuring the use of high-quality casing materials.

4.2 Execution and Monitoring:

During operations, close monitoring is critical:

  • Real-time Data Monitoring: Tracking key parameters like casing tension, pressure, and temperature.
  • Communication and Coordination: Maintaining clear communication between the drilling crew and engineering personnel.
  • Emergency Procedures: Having well-defined procedures for handling unexpected events.

4.3 Post-Operation Verification:

After operations are complete, verification is crucial:

  • Thorough Testing: Ensuring the integrity of the casing and cement through various testing methods.
  • Data Analysis: Reviewing the data gathered during operations to identify areas for improvement.
  • Documentation: Maintaining accurate and complete records of all aspects of the operation.

Chapter 5: Case Studies in Casing Operations

This chapter presents real-world examples highlighting successful casing operations, challenges encountered, and lessons learned.

(Note: Specific case studies would require detailed information about individual projects which is not available here. The following outlines a potential structure for each case study.)

Case Study Format:

  • Project Overview: Brief description of the well and its location.
  • Challenges Faced: Description of any specific difficulties encountered during the casing operation (e.g., challenging formations, equipment failure, unexpected events).
  • Solutions Implemented: Details of the solutions employed to overcome the challenges.
  • Results and Outcomes: The outcome of the operation, including any lessons learned.
  • Best Practices Demonstrated: Highlighting best practices employed during the operation.

(Example Case Study Outline – Replace with actual case study details):

Case Study 1: Successful Casing in a High-Pressure, High-Temperature Well: This case study will describe a successful casing operation in a high-pressure, high-temperature environment, focusing on the casing design, cementing techniques, and monitoring procedures used to ensure successful well completion.

Case Study 2: Case Study of a Failed Cement Job and Remedial Actions: This case study will illustrate a situation where a cement job failed and the remedial actions taken to resolve the issue. The analysis will focus on the root cause of the failure, the corrective measures, and the lessons learned for future operations.

This structured format allows for multiple case studies to be added, showcasing a range of scenarios and experiences within casing operations. The inclusion of specific numerical data, diagrams, and images would further enhance these case studies.
