Deviation Angle

Test Your Knowledge

Quiz: Understanding Inclination

Instructions: Choose the best answer for each question.

1. What is the primary purpose of inclination in well drilling?

(a) To reach subsurface targets not directly below the drilling location. (b) To increase the complexity of drilling operations. (c) To minimize the use of specialized drilling equipment. (d) To ensure the wellbore remains vertical.

2. Which type of inclination allows for a variety of angled drilling trajectories?

(a) Vertical (b) Horizontal (c) Directional (d) Inclined

3. What is the inclination angle of a wellbore drilled parallel to the surface?

(a) 0 degrees (b) 45 degrees (c) 90 degrees (d) 180 degrees

4. Which of the following is NOT a factor influenced by inclination?

(a) Environmental impact (b) Production efficiency (c) Wellbore stability (d) The type of drilling rig used

5. What tools are used to measure inclination during drilling operations?

(a) Surface surveying equipment (b) Downhole survey instruments (c) Seismic imaging tools (d) Geological mapping software

Exercise: Calculating Inclination

Instructions: Imagine you are drilling a well with a horizontal displacement of 500 meters and a vertical depth of 1000 meters. Calculate the inclination angle of the wellbore.

Formula: Inclination Angle (degrees) = arctan(Horizontal Displacement / Vertical Depth)

Hint: You will need a calculator to find the arctangent (tan⁻¹) of the result.

Techniques

Deviation Angle: A Comprehensive Guide

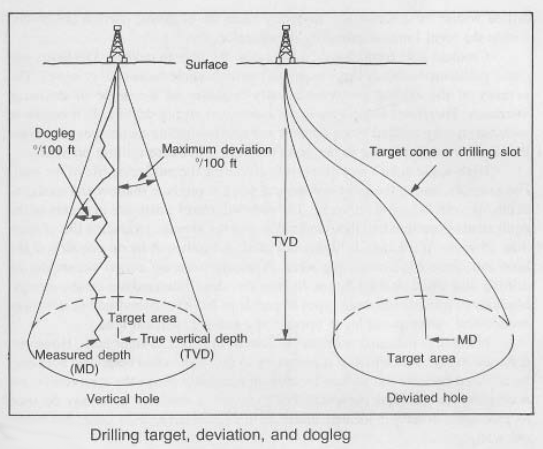

This document expands on the concept of deviation angle (here used interchangeably with inclination) in well drilling, breaking it down into key aspects. The image provided, showing a wellbore deviating from vertical, serves as a visual aid throughout.

Chapter 1: Techniques for Measuring and Controlling Deviation Angle

This chapter details the practical methods used to measure and control the deviation angle during drilling operations.

1.1 Measurement Techniques:

• Downhole Survey Instruments: These tools, deployed within the wellbore, utilize various technologies to determine the wellbore's inclination and azimuth (direction). Common technologies include:

  • Magnetic Measurement: Utilizes Earth's magnetic field to determine orientation. Susceptible to magnetic interference.
  • Gyroscopic Measurement: Employs gyroscopes to measure the wellbore's orientation independently of magnetic fields. More accurate than magnetic measurements, especially in areas with magnetic anomalies.
  • Accelerometer and Inclinometer Measurement: Uses accelerometers to measure gravity and inclinometers to measure the angle of inclination. Provides highly accurate measurements, often combined with other techniques.
  • Combination Tools: Modern tools often integrate multiple technologies for improved accuracy and redundancy.

• Survey Frequency: The frequency of surveys depends on the complexity of the well trajectory and the required accuracy. More frequent surveys are necessary in highly deviated wells or complex geological formations.

• Data Processing and Interpretation: Raw survey data needs processing to account for tool errors, magnetic interference, and other factors to generate an accurate wellbore trajectory. Software plays a crucial role in this process.

1.2 Controlling Deviation Angle:

• Directional Drilling Techniques: These techniques are crucial for controlling the wellbore trajectory, ensuring it reaches the desired target while maintaining the planned deviation angle. Common techniques include:
  • Bent Sub: A specialized drill collar with a built-in bend that steers the drill bit.
  • Mud Motors: These motors rotate the drill bit independently of the drill string, allowing for precise directional control.
  • Rotary Steerable Systems (RSS): Advanced systems that use sensors and actuators to actively control the drill bit's direction and inclination. They offer greater precision and automation than traditional methods.
  • Geosteering: Real-time adjustments to the wellbore trajectory based on formation evaluation data acquired during drilling.

Chapter 2: Models for Predicting and Simulating Deviation Angle

This chapter covers the mathematical and computational models used to predict and simulate wellbore trajectories.

• Trajectory Planning Software: Before drilling commences, software models are used to plan the optimal wellbore trajectory based on geological data, target location, and drilling constraints. These models incorporate various factors, including the expected formation properties and the planned directional drilling techniques.

• Wellbore Stability Models: These models predict the potential for wellbore instability (e.g., collapses, breakouts) based on the planned deviation angle and the formation's mechanical properties. This information helps to determine appropriate wellbore strengthening techniques.

• Simulation Software: Simulations allow engineers to test different drilling scenarios and optimize the wellbore trajectory before actual drilling begins, reducing the risk of costly deviations from the planned path. These simulations consider various parameters, such as formation properties, drilling parameters, and tool behavior.

Chapter 3: Software for Deviation Angle Management

This chapter focuses on the software used in the process.

• Trajectory Planning Software: Examples include Petrel, Landmark, and Kingdom. These programs facilitate the design of well trajectories, including the specification of deviation angles at various depths.

• Downhole Survey Processing Software: Software dedicated to processing and interpreting data from downhole survey instruments. This ensures accurate determination of wellbore trajectory and deviation angles.

• Geosteering Software: Software that integrates real-time data from formation evaluation tools with wellbore trajectory models to guide the drilling process and maintain the desired deviation angle.

• Wellbore Stability Software: This software analyzes the stresses on the wellbore and predicts the potential for instability based on the planned deviation angle.

Chapter 4: Best Practices for Deviation Angle Management

This chapter highlights best practices to ensure accurate and efficient deviation angle control.

• Accurate Pre-Drill Planning: Thorough geological characterization and trajectory planning are essential.

• Regular Downhole Surveys: Frequent surveys ensure accurate tracking of the wellbore trajectory and enable timely corrections if needed.

• Careful Selection of Directional Drilling Techniques: Choosing appropriate techniques based on wellbore complexity, formation properties, and other factors.

• Real-time Monitoring and Control: Continuous monitoring of wellbore trajectory and parameters allows for immediate response to any deviations.

• Experienced Personnel: Highly trained personnel are crucial for successful directional drilling operations.

Chapter 5: Case Studies of Deviation Angle Management

This chapter provides real-world examples illustrating the importance of proper deviation angle management.

• Case Study 1: Successful Extended Reach Drilling: A case study demonstrating how precise control of deviation angle enabled the successful drilling of an extended-reach well, accessing a remote reservoir.

• Case Study 2: Managing Wellbore Instability: A case study detailing how wellbore stability modeling and appropriate drilling techniques prevented wellbore collapse in a challenging geological formation.

• Case Study 3: Optimizing Production Through Multilateral Wells: A case study demonstrating how strategic control of deviation angle in multilateral wells maximized contact with multiple producing zones, enhancing production efficiency.

This comprehensive guide provides a thorough overview of deviation angle management in well drilling. The information presented aims to improve understanding and facilitate safer, more efficient, and cost-effective drilling operations.
